Model: LGZJ/KSZJ
Discharge Pressure(Mpa): 1.8-3.5/1.7-2.5
Flow Capacity(m³/min): 30-43/18-38
Engine Power(HP): 400-775/220-550

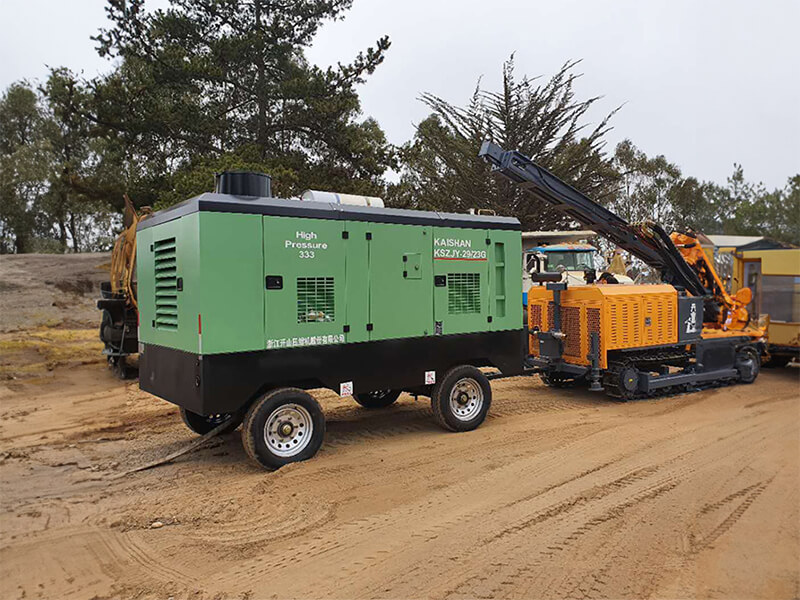

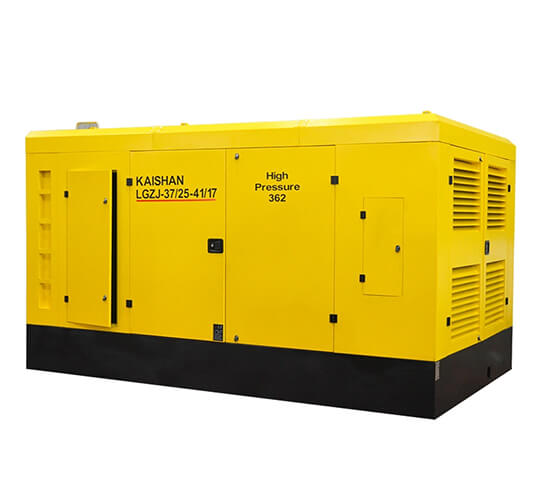

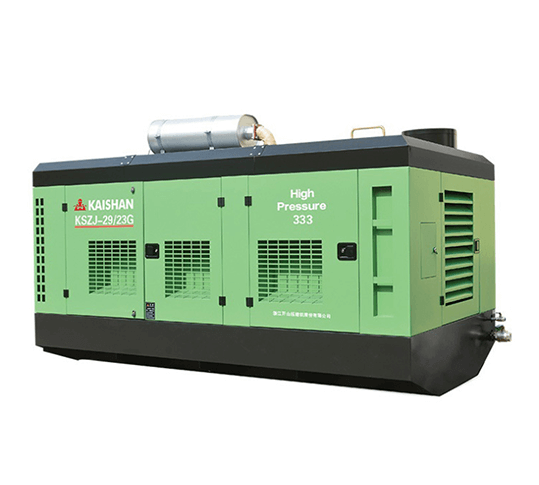

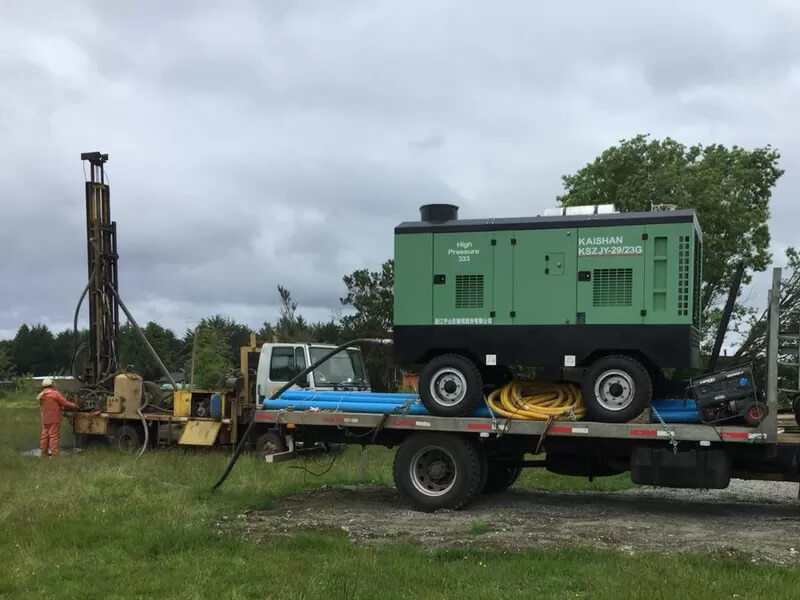

LGZJ/KSZJ mobile diesel screw air compressor is a screw compressor for well drilling. Especially suitable for use with geothermal water well drilling rigs and oil and gas field drilling operations.
1. SKY patented screw host
2.Heavy-duty special diesel engine
3.Computer control system
4.Efficient cooling system
5.Optional value-added systems:
Low temperature starting system
Aftercooler and water separator
| Model | Discharge Pressure(Mpa) | Capacity(m³/min) | Engine Power(HP) | Outlet Valve | Weight(kg) | Dimensions(mm) |

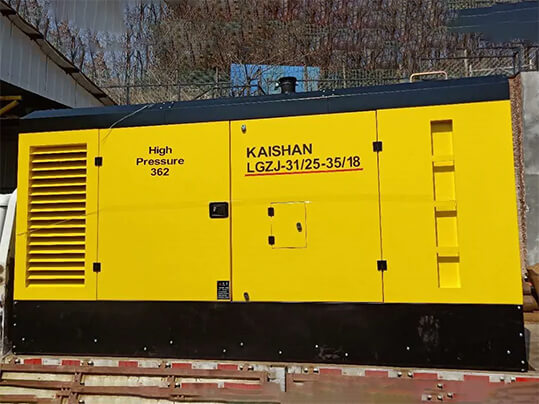

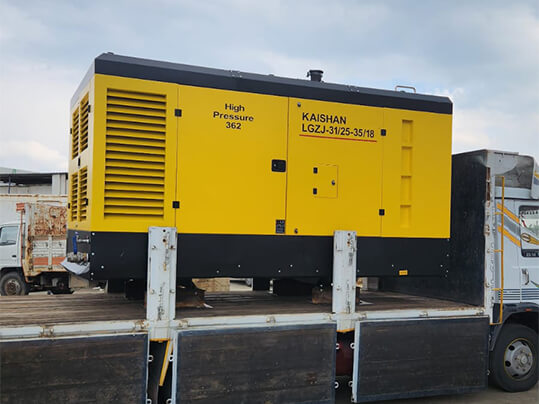

| LGZJ-31/25-35/18 | 2.5-1.8 | 31-35 | YuChai 400HP | G2×1,G¾ ×1 | 4500 | 3650×2000×2200 |
| LGZJ-36/30-41/20 | 3.0-2.0 | 36-41 | YuChai 560HP | G2×1,G¾ ×1 | 6000 | 3800×2160×2300 |
| LGZJ-36/30-41/20K | 3.0-2.0 | 36-41 | Cummins 550HP | G2×1,G¾ ×1 | 5800 | 3800×2160×2330 |
| LGZJ-30/35-35/25 | 3.5-2.5 | 30-35 | YuChai 560HP | G2×1,G¾ ×1 | 6000 | 3800×2160×2300 |
| LGZJ-30/35-35/25K | 3.5-2.5 | 30-35 | Cummins 550HP | G2×1,G¾ ×1 | 5800 | 3800×2160×2330 |
| LGCG-43/25-37/35 | 2.5-3.5 | 43-35 | YuChai 775HP | G2×1,G¾ ×1 | 7000 | 4160×2200×2257 |
| KSZJ-18/17A | 1.7 | 18 | YuChai 220HP | G2×1,G¾ ×1 | 2200 | 2800×1520×1780 |
| KSZJ-18/18 | 1.8 | 18 | YuChai 260HP | G2×1,G¾ ×1 | 2700 | 3050×1800×1800 |

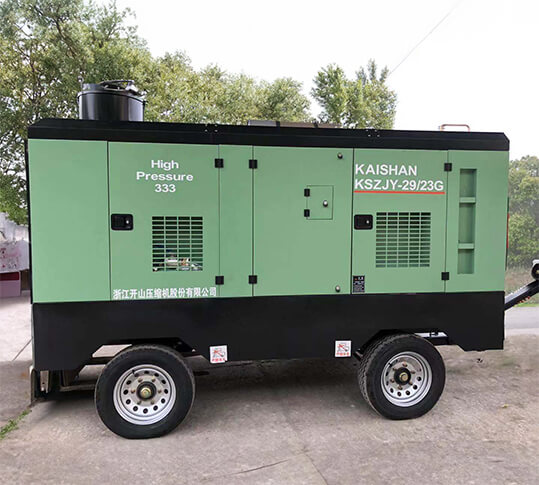

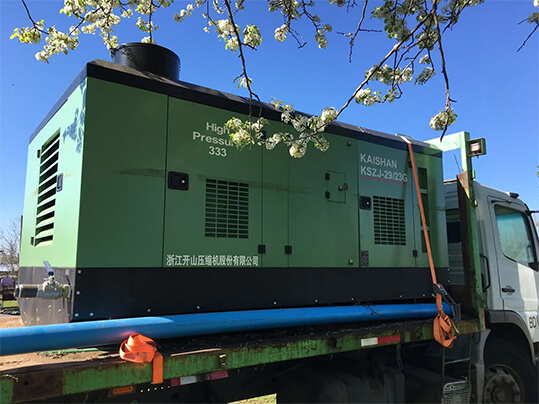

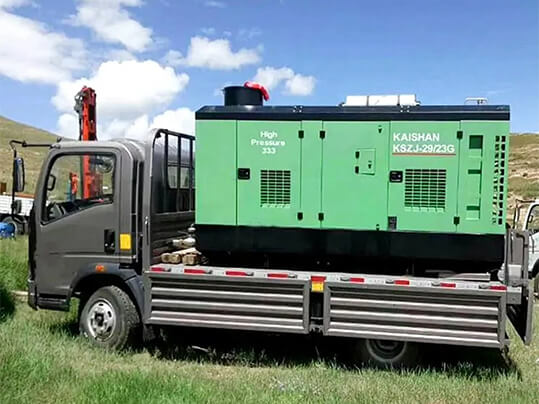

| KSZJ-29/23G | 2.3 | 29 | YuChai 400HP | G2×1,G¾ ×1 | 4050 | 3500×1950×2030 |
| KSZJ-29/23-32/17 | 1.7-2.3 | 29-32 | YuChai 400HP | G2×1,G¾ ×1 | 4050 | 3500×1950×2030 |

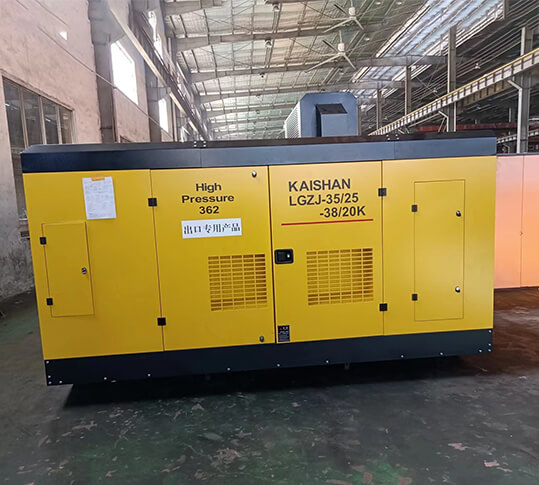

| LGZJ-35/25-38/20 | 2.5-2.0 | 35-38 | YuChai 550HP | G2×1,G¾ ×1 | 4500 | 3500×1950×2320 |
| LGZJ-35/25-38/20K | 2.5-2.0 | 35-38 | Cummins 550HP | G2×1,G¾ ×1 | 4500 | 3500×1950×2200 |
