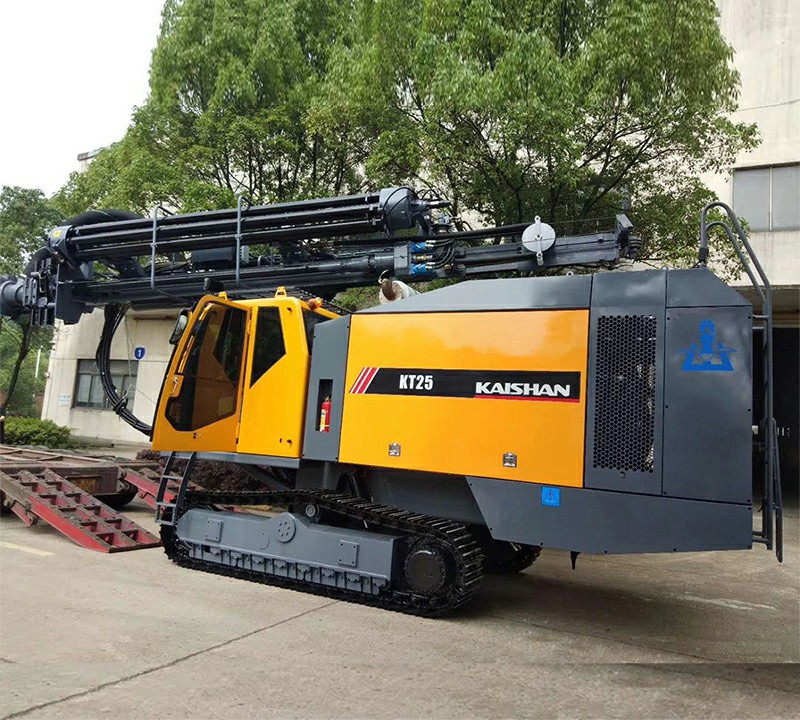

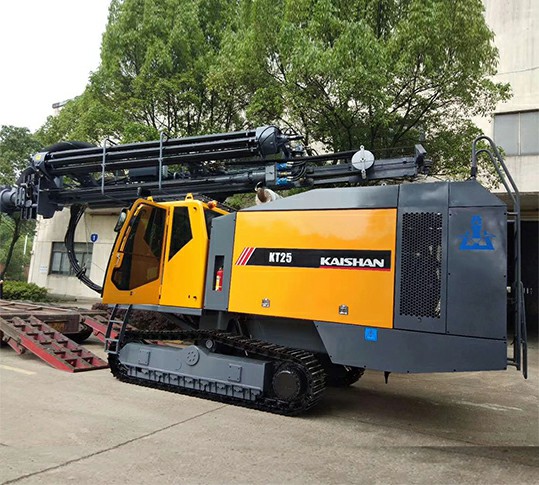

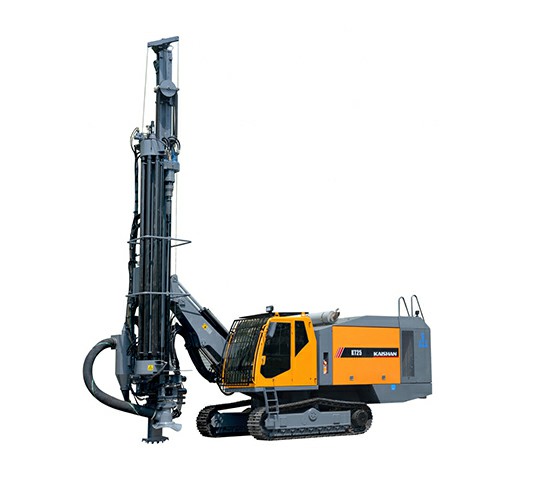

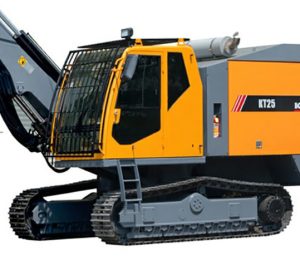

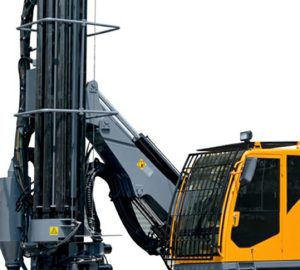

KT25 Integrated Down The Hole Drill Rig For Open Use

Applications

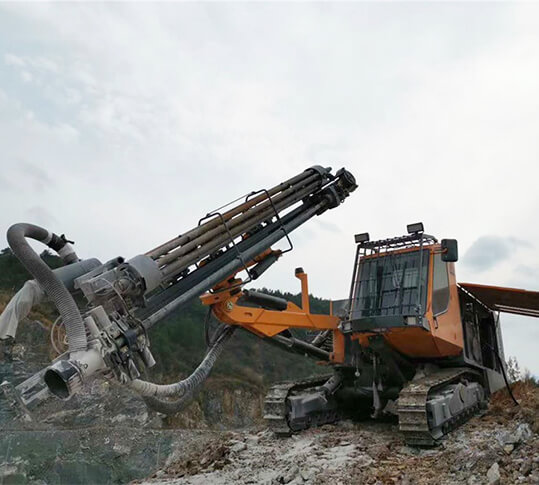

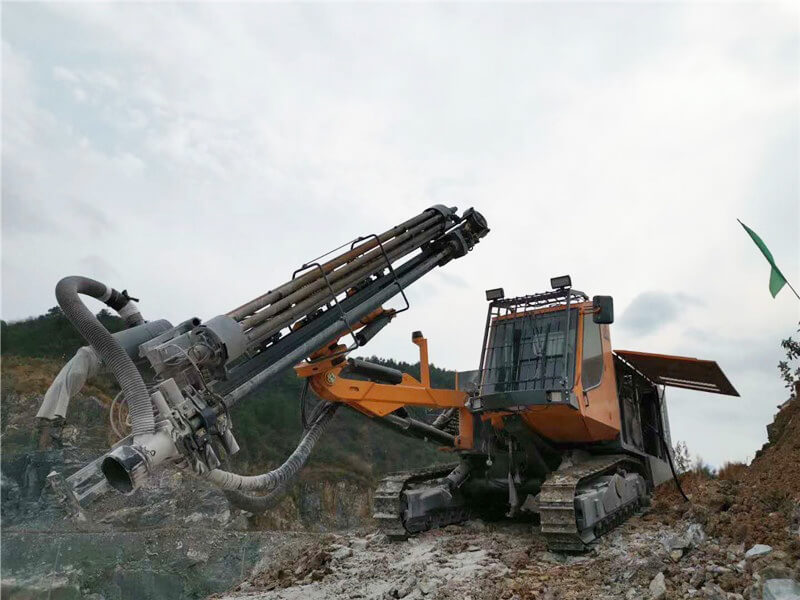

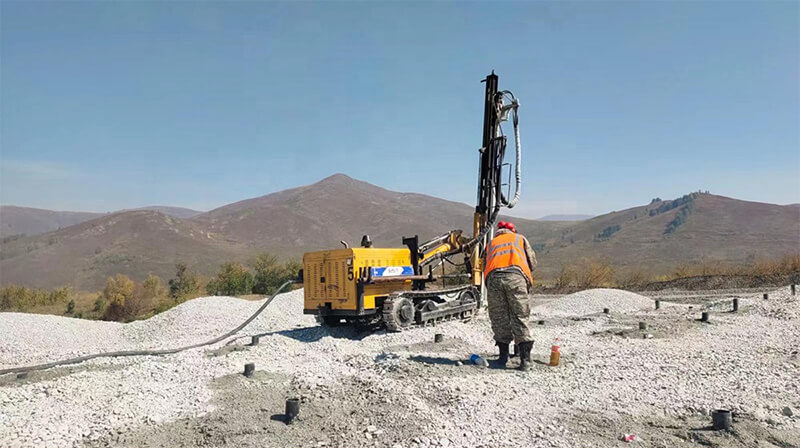

The KT25 integrated down the hole drill rig for open use can drilling vertical,inclined and horizontal holes,mainly used for open-pit mine,stonework blast holes and pre-splitting holes,It is driven by the Caterpillar diesel engine and two-terminal output can drive the screw compression system and hydraulic transmission system.

Features

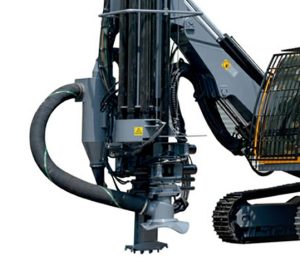

The drill rig is equipped with the automactic rod handling system,drill pipe floating joint module,drill pipe lubrication module,drill pipe sticking prevention system,hydraulic dry dust collection system,air conditioning cab,etc.optional drilling angle and depth indication function.The drill rig is characterized by excellent integrity,high automation,efficient drilling,environment-friendliness,energy conservation,simple operation,flexibility and travelling safert,ect.

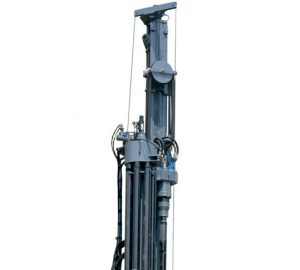

• High torque gyrator drill rig rig rig rig




• Stable hydraulic system drill rig rig




• Steel track adaptable to all terrains




• Automatic loading and unloading drill pipe





Technical Parameters
