Model: LGY
Discharge Pressure(Mpa): 0.6-1
Flow Capacity(m³/min): 2.4-5
Rated Power(kW): 15-30

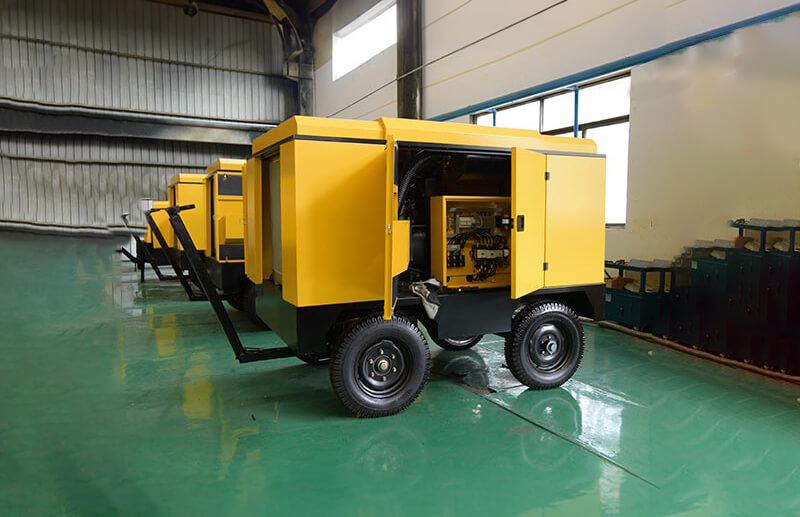

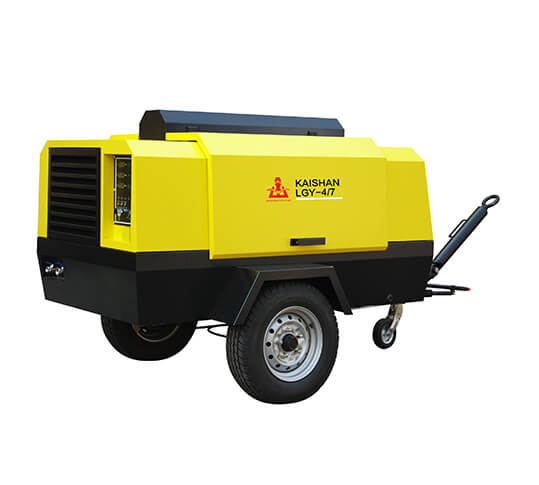

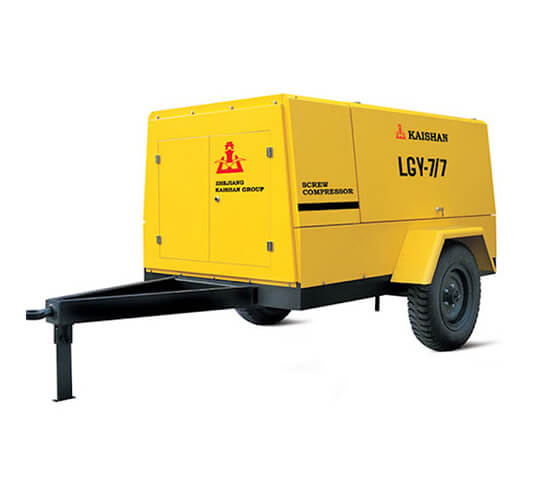

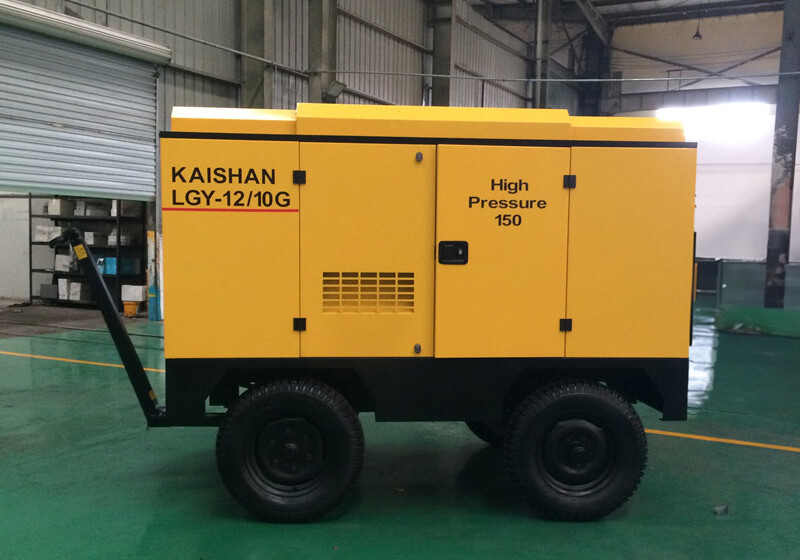

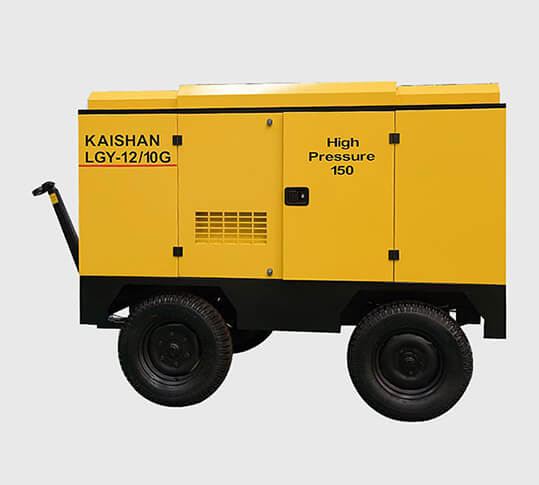

LGY mobile screw air compressor is widely applied in the industries, such as, mine, water conservancy, transportation, shipbuilding, urban construction, energy and war industry, etc.

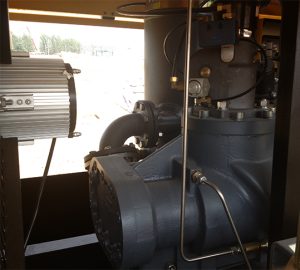

Kaishan patent SKK, SKY air compressor head, less compressor parts and no quick-wear parts. Therefore, it operates reliably, with long service life. The overhaul interval can reach up to 40,000-80,000 hours.
High automatic degree can achieve unattended operation.
It has no unbalance inertia force, can operate steadily with high speed, and can achieve no-base operation. It is specially suitably to act as portable compressor, with little volume, light weight and little occupied area.
It is featured with compulsory gas input. And the volume flow is almost not affected by the discharge pressure, and high efficiency can be kept within wide range of speed.
| Model | Discharge Pressure(Mpa) | Flow Capacity(m³/min) | Rated Power(kw) | Outlet Valve | Weight(kg) | Dimensions(mm) |
| LGY-2.8/8T | 0.8 | 2.8 | 15 | G1 | 254 | 1160×760×920 |
| LGY-2.8/8 | 0.8 | 2.8 | 15 | G1×2 | 350 | 1485×815×1005 |
| LGY-2.4/10 | 1 | 2.4 | 15 | G1×2 | 350 | 1485×815×1005 |
| LGY-3.6/8G | 0.8 | 3.6 | 18.5 | G1×2 | 360 | 1550×900×1130 |
| LGY-3.6/10G | 1 | 3.6 | 22 | G1×2 | 380 | 1550×900×1130 |
| LGY-4.5/6 | 0.6 | 4.5 | 22 | G1×2 | 420 | 1480×900×1115 |
| LGY-4.8/10 | 1 | 4.8 | 30 | G1×2 | 440 | 1480×900×1115 |
| LGY-5/8 | 0.8 | 5 | 30 | G1×2 | 440 | 1480×900×1115 |
| LGY-5/8G | 0.8 | 5 | 30 | G1×2 | 480 | 1570×900×1130 |
| LGCY-5/8(twin cylinder) | 0.8 | 5 | Xichai 50HP | G1×1,G1/2 ×1 | 740 | 1660×1020×1610 |
| LGY-5/8GT | 0.8 | 5 | 30 | G1×2 | 460 | 1570×900×1130 |
