Technical Specifications: KG520/KG520H
Supporting Power: 73 kW/2200r/min
Drilling Diameter: 105-152 mm
Drilling Depth: 25 m

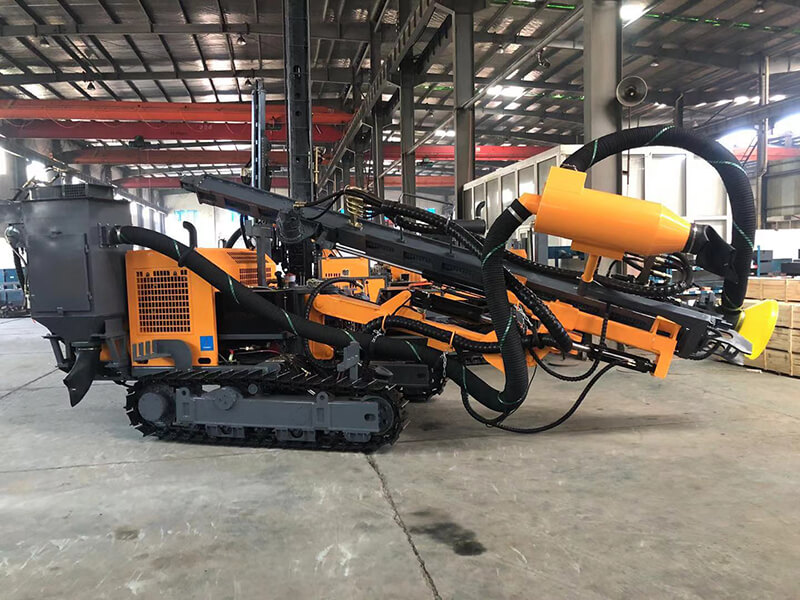

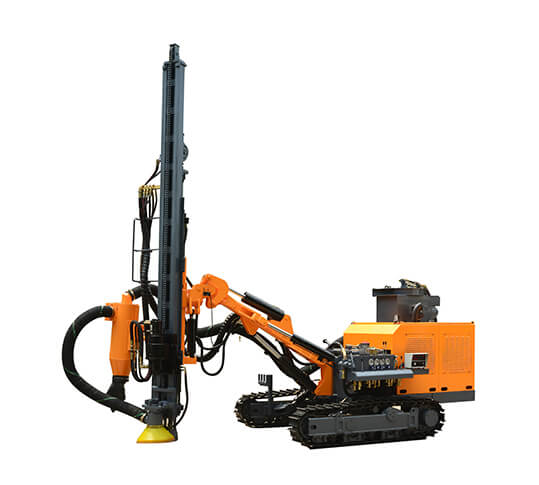

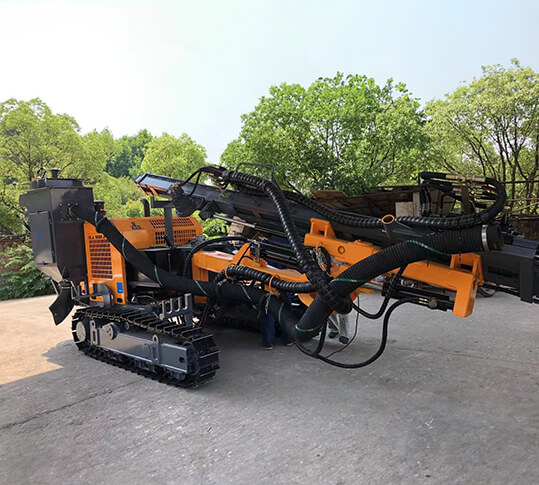

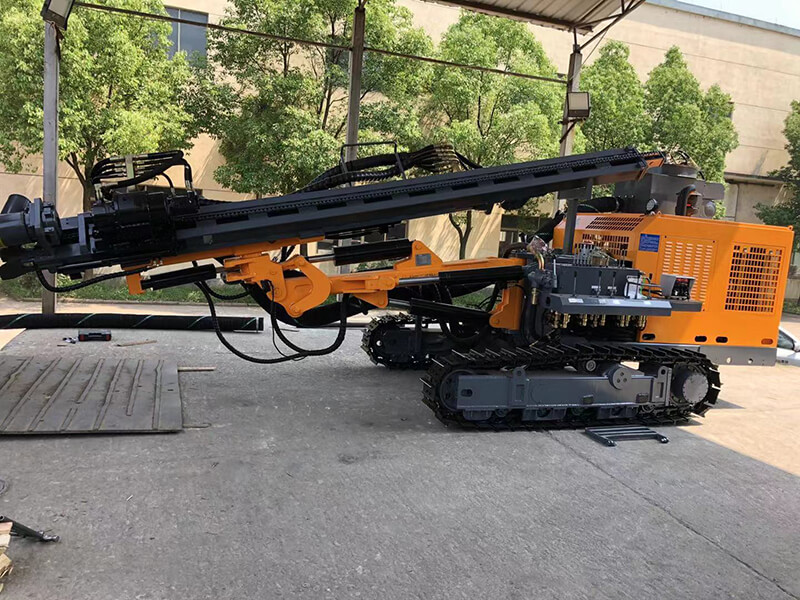

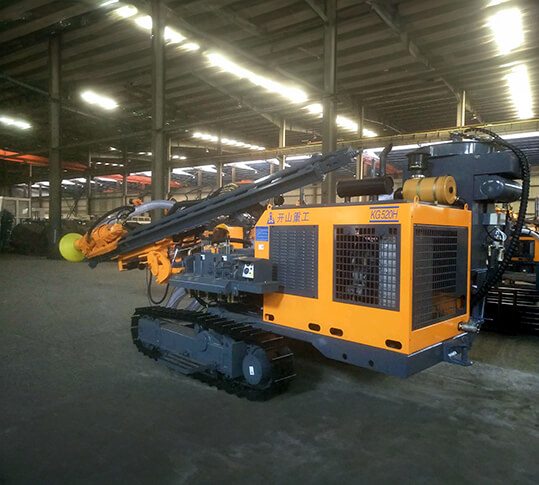

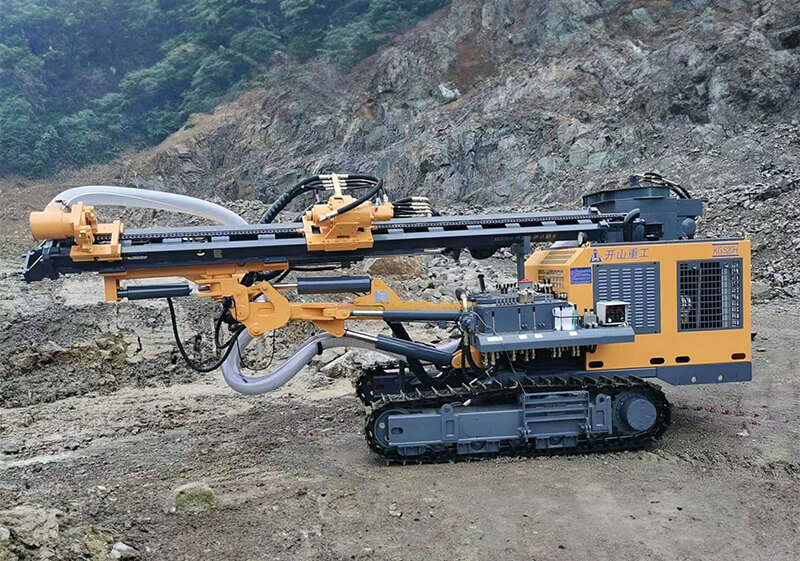

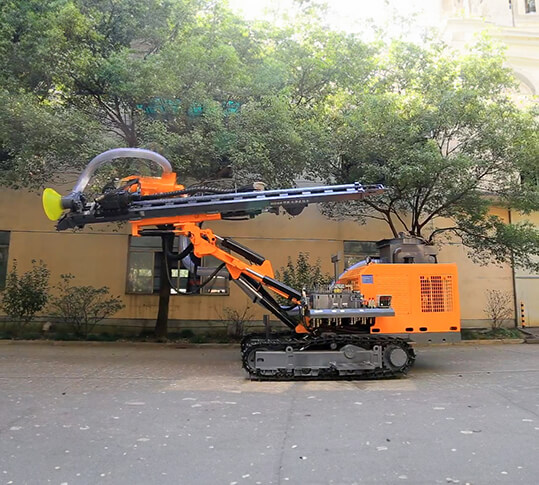

The KG520/KG520H dth drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
The KG520/KG520H DTH drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine (China lll), the drill rig meets national standards for emissions and environment. The ramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved, thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.
Kaishan LGCY-18/17
Kaishan LGCY-19.5/19
Kaishan KSCY-750/20
| Model of drill rig | KG520 | KG520H |
| Weight of complete machine | 6500KG | 7000KG |
| Outer dimensions | 6800×2200×2850mm | 6800×2250×2850mm |
| Drilling Hardness | f=6-20 | |
| Drilling diameter | Φ105-152mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-100rpm | |
| Rotary torque (Max) | 4000N·m (Max) | |
| Lifting force | 25KN | |
| Method of Feed | Motor-roller chain | |
| Feed strock | 4150mm | |
| Travelling speed | 0-4km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 440mm | |
| Tilt angle of boom | Down: 135°, up: 50°, total: 185° | |
| Swing angle of boom | Left: 50°, right: 50°, total: 100° | |
| Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | |
| Swing angle of drill boom | Left: 45°, right: 45°, total: 90° | |
| Leveling angle of track | ±10° | |
| Compensation length of beam | 900mm | |
| Supporting power | Yuchai YC4DK100-T304(73KW/2200r/min) | |
| DTH hammer | K40 | |
| Drilling rod | Φ76×3m or Φ89×3m | |
| Air consumption | 15-22m³/min | |
| Maximum height of horizontal hole | 3500mm | |
| Minimum height of horizontal hole | 350mm | |
| Recommended Air Compressors | |
| Diesel engine portable screw air compressor: | Kaishan LGCY-18/17 |
| Kaishan LGCY-19.5/19 | |
| Kaishan KSCY-750/20 | |
| Note: Air compressor selection subject to hole diameter and air hose length | |
