Model: KSCY
Discharge Pressure(Mpa): 0.8-2.3
Flow Capacity(m³/min): 6-24
Engine Power(HP): 75-340

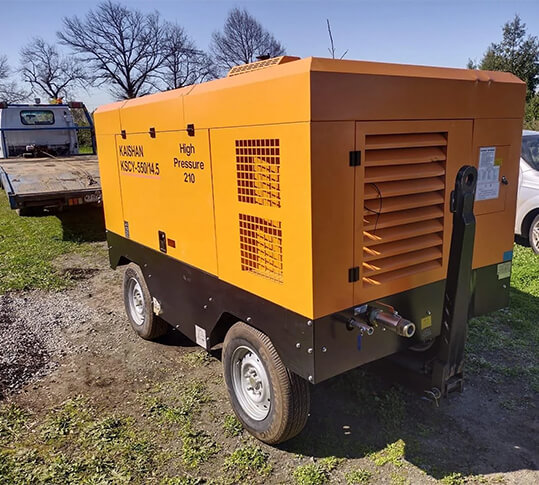

KAISHAN is a professional supplier of screw compressor on the Chinese market. KSCY mobile diesel screw air compressors have been widely recognized by our customers.
1. Gas volume automatic control system
According to the operating pressure, the air volume adjustment device automatically and steplessly adjusts the suction volume of the air compressor and the speed of the diesel engine. Completely match the air supply volume and air consumption volume to achieve the best results with the lowest fuel consumption.
2. Low noise operation
Silent outer cover design, low operating noise, and the machine design is more environmentally friendly.
3. Special engine - strong power
It is equipped with heavy-duty special diesel engines such as Yuchai and Cummins to achieve the best combustion state throughout the engine's operation, making the product more reliable, more powerful, and more fuel-efficient.
| Model | Discharge Pressure(Mpa) | Capacity(m³/min) | Engine Power(HP) | Outlet Valve | Weight(kg) | Dimensions(mm) |

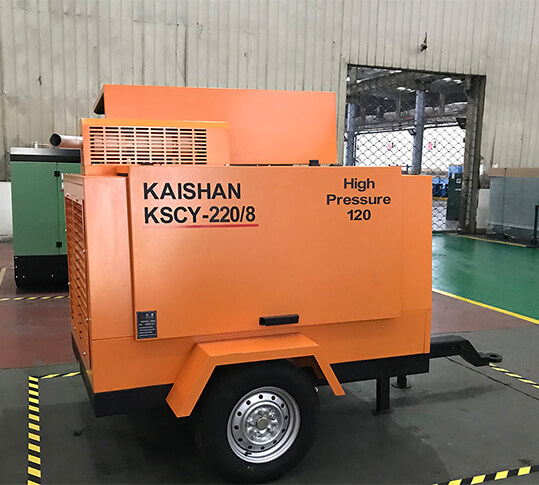

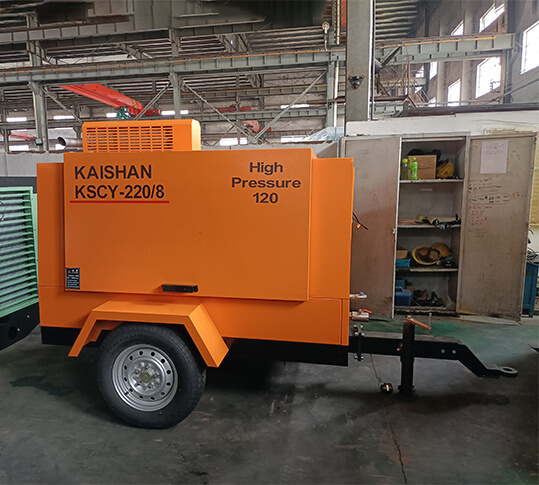

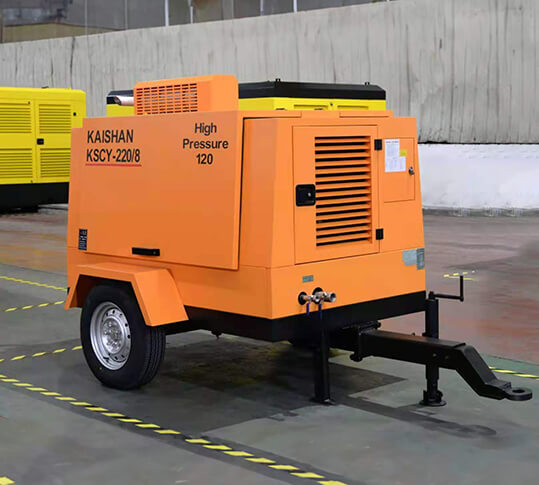

| KSCY-220/8X | 0.8 | 6 | Xichai 75HP | G11/4 ×1,G3/4 ×1 | 1400 | 3240×1760×1850 |

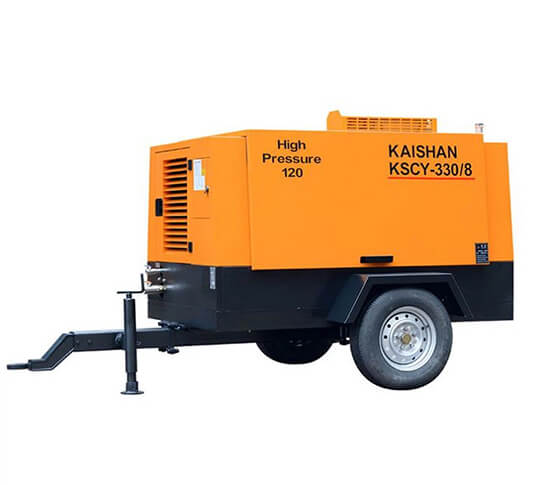

| KSCY-330/8 | 0.8 | 9 | Yuchai 120HP | G11/2 ×1,G3/4 ×1 | 1550 | 3240×1760×1785 |
| KSCY-330/8K | 0.8 | 9 | Cummins 125HP | G11/2 ×1,G3/4 ×1 | 1830 | 3580×1700×1962 |
| KSCY-425/10 | 1 | 12 | Yuchai 160HP | G11/2 ×1,G3/4 ×1 | 1880 | 3300×1880×2100 |
| KSCY-425/10K | 1 | 12 | Cummins 150HP(Euro 2) | G11/2 ×1,G3/4 ×1 | 1830 | 3580×1700×1962 |
| KSCY-400/14.5 | 1.5 | 11 | Yuchai 160HP | G11/2 ×1,G3/4 ×1 | 1880 | 3300×1880×2100 |
| KSCY-400/14.5K | 1.5 | 11 | Cummins 150HP(Euro 2) | G11/2 ×1,G3/4 ×1 | 1830 | 3580×1700×1962 |

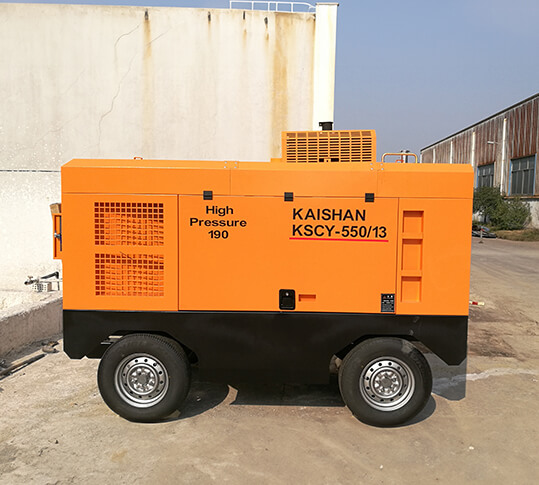

| KSCY-550/13 | 1.3 | 15 | Yuchai 190HP(4 cylinder) | G11/2 ×1,G3/4 ×1 | 2400 | 3000×1520×2200 |
| KSCY-550/13K | 1.45 | 15 | Cummins 180HP(Euro 2) | G11/2 ×1,G3/4 ×1 | 2000 | 3500×1880×2100 |
| KSCY-570/12-550/15 | 1.2-1.5 | 16-15 | Yuchai 190HP(6 cylinder) | G11/2 ×1,G3/4 ×1 | 2400 | 3300×1880×2100 |
| KSCY-570/12-550/15K | 1.2-1.5 | 16-15 | Cummins 180HP | G11/2 ×1,G3/4 ×1 | 2000 | 3500×1880×2100 |

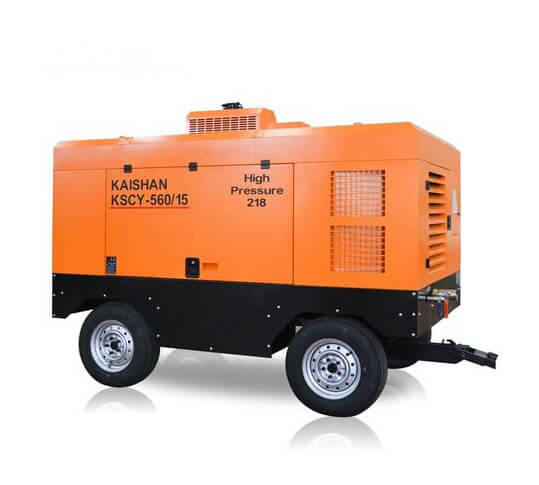

| KSCY-560/15 | 1.5 | 16 | Yuchai 220HP | G2×1,G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY-650/20-700/17T | 2.0-1.7 | 18-19 | Yuchai 260HP | G2×1,G3/4×1 | 2800 | 3000×1520×2300 |
| KSCY-650/20-700/17TK | 2.0-1.7 | 18-19 | Cummins 260HP | G2×1,G3/4×1 | 2700 | 3000×1520×2390 |
| KSCY-750/20-800/17T | 2.0-1.7 | 20-22 | Yuchai 310HP | G2×1,G3/4×1 | 3900 | 3300×1800×2300 |
| KSCY-24/23(without brake) | 2.3 | 24 | Yuchai 340HP | G2×1,G3/4×1 | 4500 | 3700×1950×2750 |
| KSCY-24/23(With brake) | 2.3 | 24 | Yuchai 340HP | G2×1,G3/4×1 | 4500 | 3700×1950×2750 |
