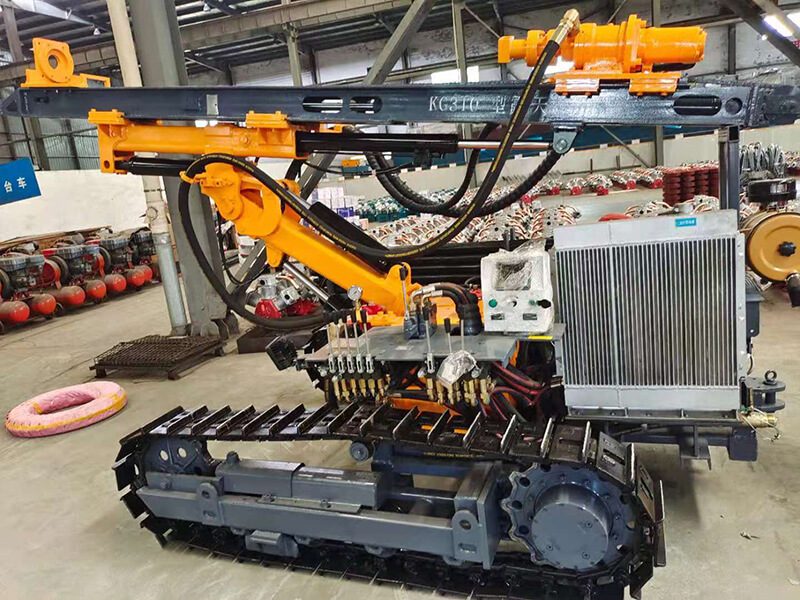

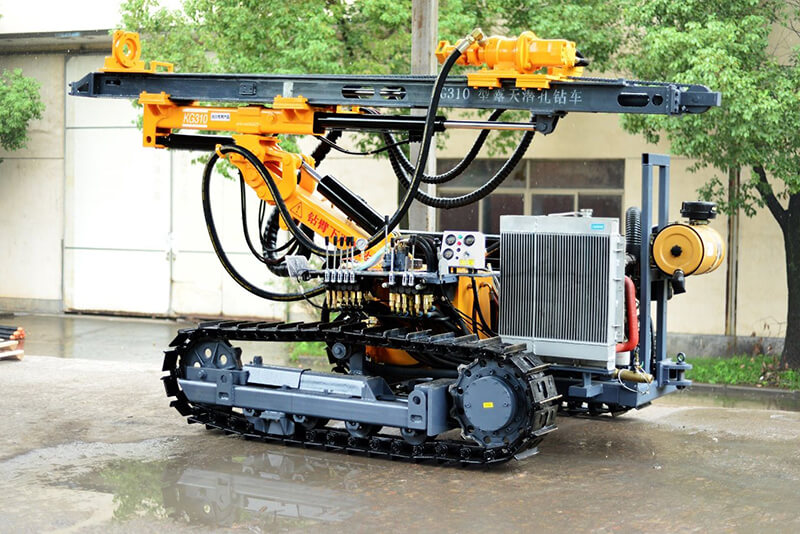

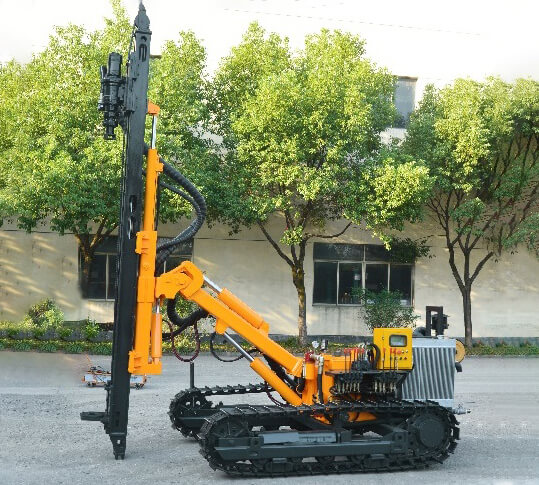

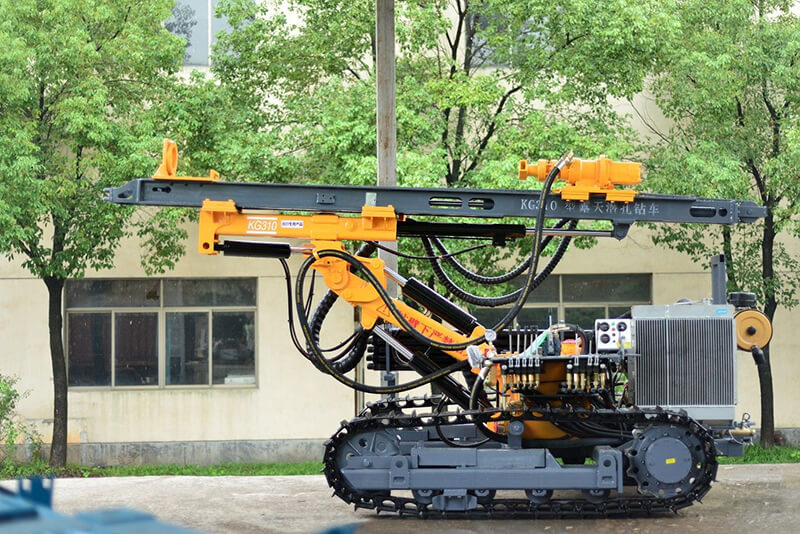

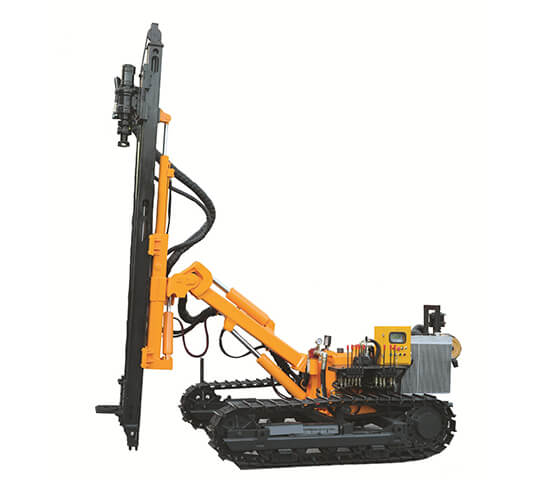

KG310/KG310H Down the hole Drill Rig for Open Use-Kaishan Machines Equipment Co LTD

Applications

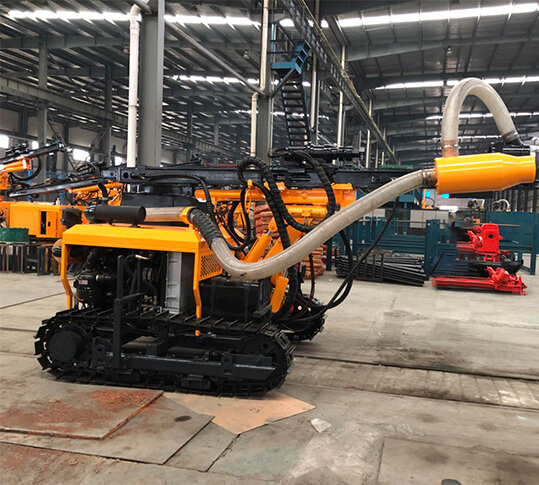

The KG310H DTH drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Features

The KG310/KG310H dth drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai double-cylinder engine (China III), the drill rig meets the national standards for emissions and environment. The flexible derricking mechanism is suitably qualified for horizontal drilling at a low level. The hydraulic system has been improved, leading to increased system flow and rotary speed. Moreover, the hydraulic cylinder has been optimized, thus making it more reliable; and the additional ring (plate) makes handling and lifting easier.

Recommended Air Compressors

Kaishan LGCY-12/10

Kaishan KSCY-550/13

Technical Parameters

Model of drill rig	KG310	KG310H
Weight of complete machine	4000KG	4200KG
Outer dimensions	4650×2000×2200mm	4650×2500×2200mm
Drilling hardness	f=6-20
Drilling diameter	Φ80-105mm
Depth of economical drilling	20m
Rotary speed	0-110rpm
Rotary torque	1650N·m
Lifting force	18KN
Method of Feed	Oil cylinder-leaf chain
Feed stroke	2670mm
Travelling speed	0-2.0km/h
Climbing capacity	≤30°
Ground clearance	250mm
Tilt angle of beam	Down:145°, up: 55°, total: 190°
Swing angle of boom	Left: 100°, right: 45°, total: 145°
Pitch angle of drill boom	Down: 50°, up: 25°, total: 75°
Compensation length of beam	900mm
Supporting power	Yuchai YCCA13T6-45 (33.1KW/2400r/min)
Drilling rod	Φ60×2m
DTH hammer	L30
Air consumption	7-15m³/min
Maximum height of horizontal hole	2650mm
Minimum height of horizontal hole	360mm

Recommended Air Compressors

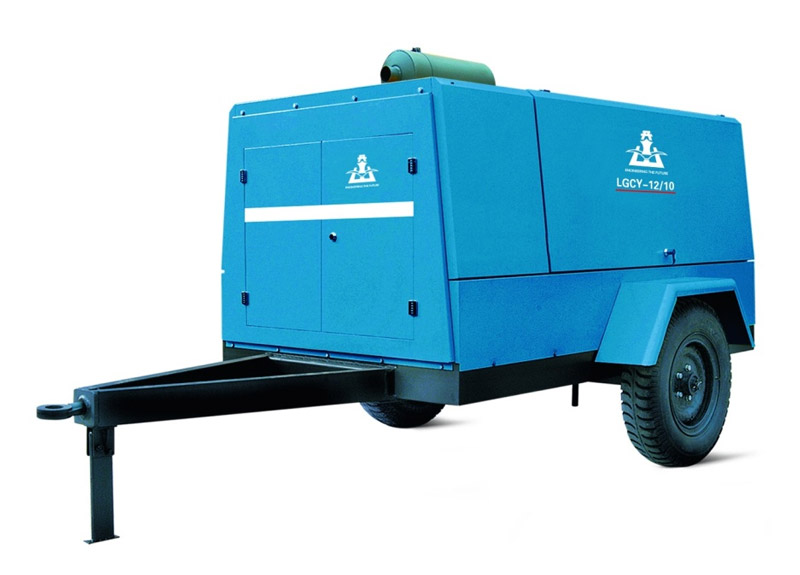

Diesel engine portable screw air compressor:	Kaishan LGCY-12/10
	Kaishan LGCY-550/13
Note: Air compressor selection subject to hole dimameter and air hose length
