Model: KSDY
Discharge Pressure(Mpa): 0.8-1.8
Flow Capacity(m³/min): 10-24
Power: 75-132
Kaishan KSDY mobile screw air compressors are widely used in mining, water conservancy, transportation, shipbuilding, urban construction, energy, military and other industries.
The special rotor tooth profile provides excellent performance for each type of handpiece; innovative design, optimized structure, and high reliability performance.
The overall structure is compact, the volume is light, and the on-site movement is flexible, which saves time on site movement.
The spacious opening doors and windows make it very convenient to maintain the air filter, oil filter, oil separator core, etc. The parts to be repaired are within reach, reducing downtime maintenance and repair time.
| Model | Discharge Pressure(Mpa) | Capacity(m³/min) | Power | Outlet Valve | Weight(kg) | Dimensions(mm) |
| KSDY-13.6/8 | 0.8 | 13.6 | 75 | G2×1,G¾×1 | 1750 | 2700×1700×1700 |

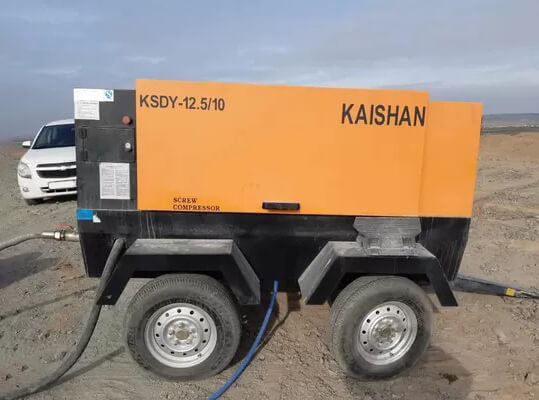

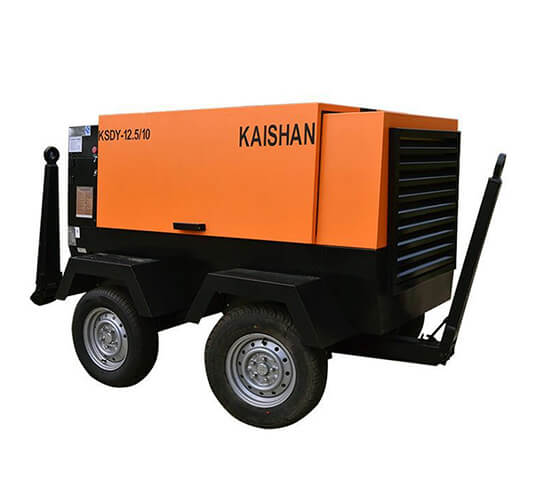

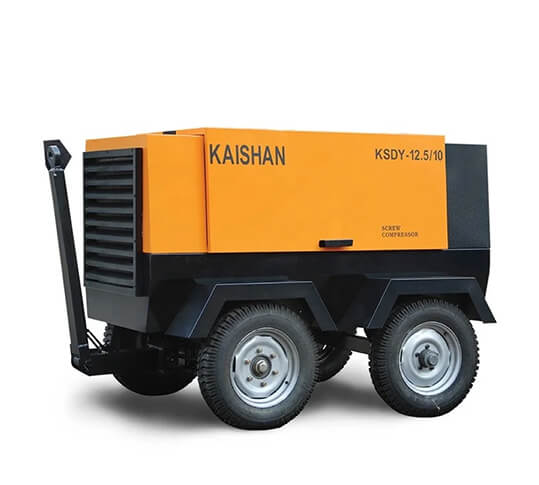

| KSDY-12.5/10 | 1 | 12.5 | 75 | G2×1,G¾×1 | 1750 | 2700×1700×1700 |
| KSDY-10/14.5(two wheels) | 1.45 | 10 | 75 | G2×1,G¾×1 | 1600 | 2500×1530×1700 |
| KSDY-16.5/8 | 0.8 | 16.5 | 90 | G2×1,G¾×1 | 1940 | 2730×1680×1800 |

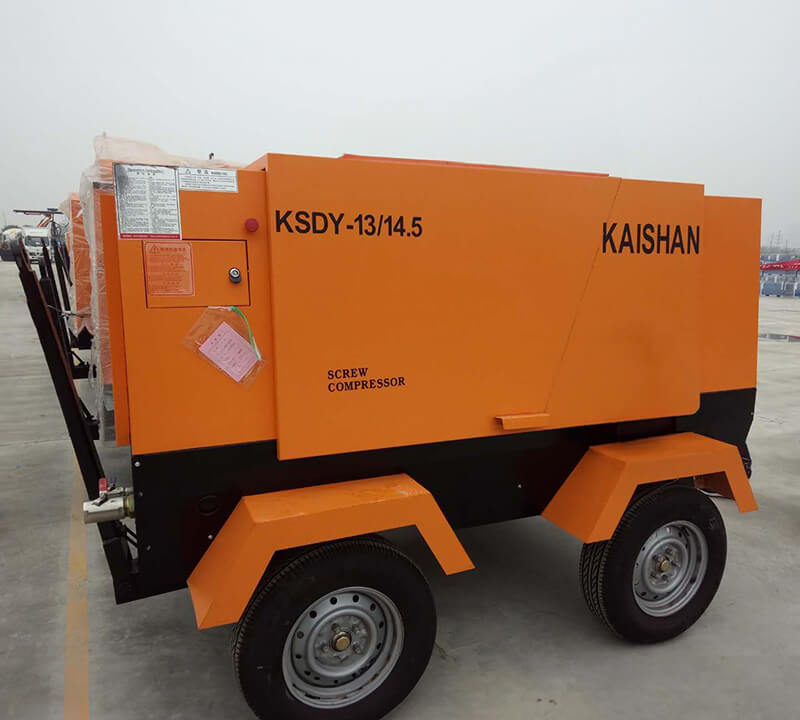

| KSDY-13/14.5(two wheels) | 1.45 | 13 | 90 | G2×1,G¾×1 | 1760 | 2700×1670×1800 |
| KSDY-13/14.5(four wheels) | 1.45 | 13 | 90 | G2×1,G¾×1 | 1910 | 2730×1680×1800 |
| KSDY-20/8 | 0.8 | 20 | 110 | G2×1,G¾×1 | 3115 | 3065×1835×2000 |
| KSDY-16.5/12 | 1.2 | 16.5 | 110 | G2×1,G¾×1 | 3000 | 3065×1835×2000 |
| KSDY-24/8 | 0.8 | 24 | 132 | G2×1,G¾×1 | 3150 | 3065×1835×2000 |
| KSDY-18/13 | 1.3 | 18 | 132-Ⅱ | G2×1,G¾×1 | 3070 | 3065×1835×2000 |
| KSDY-15/17 | 1.7 | 15 | 132-Ⅱ | G2×1,G¾×1 | 2975 | 3065×1835×2000 |
| KSDY-22/18-Ⅱ | 1.8 | 22 | 132-Ⅳ | G2×1,G¾×1 | 3700 | 3400×1620×2200 |

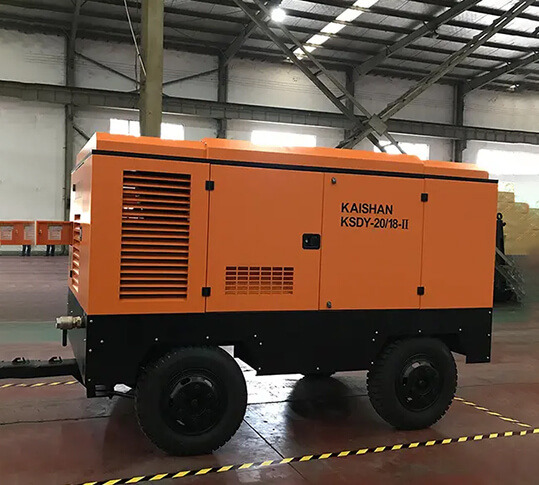

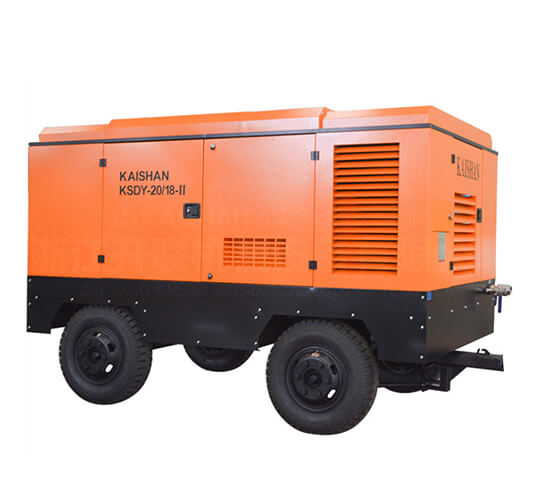

| KSDY-20/18-Ⅱ | 1.8 | 20 | 132-Ⅱ | G2×1,G¾×1 | 3100 | 3400×1620×2200 |
