KW200R Water Well Drilling Rig-Kaishan Machines Equipment Co LTD

Applications

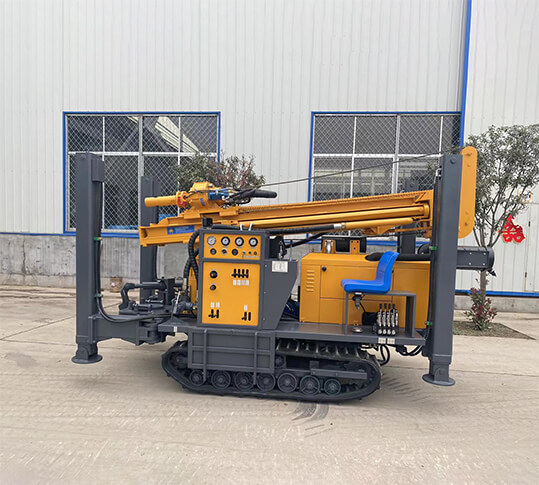

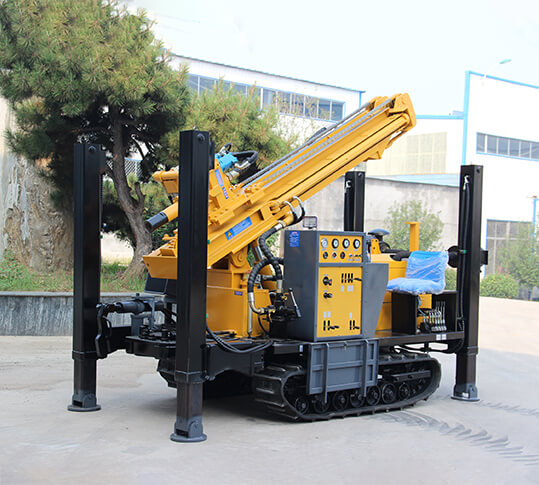

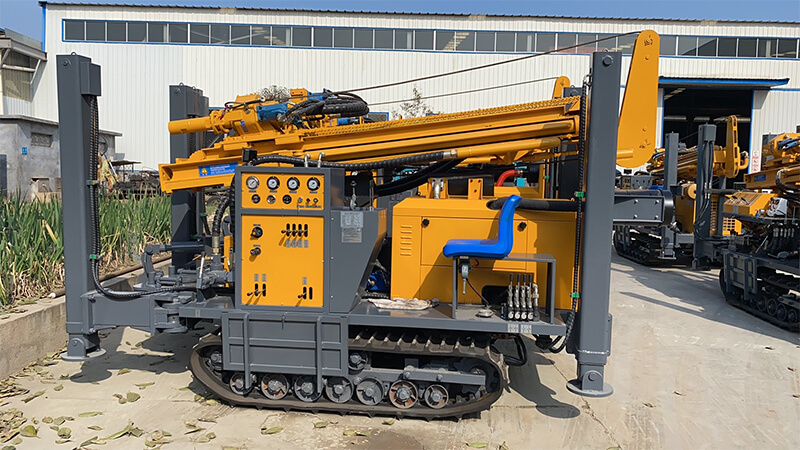

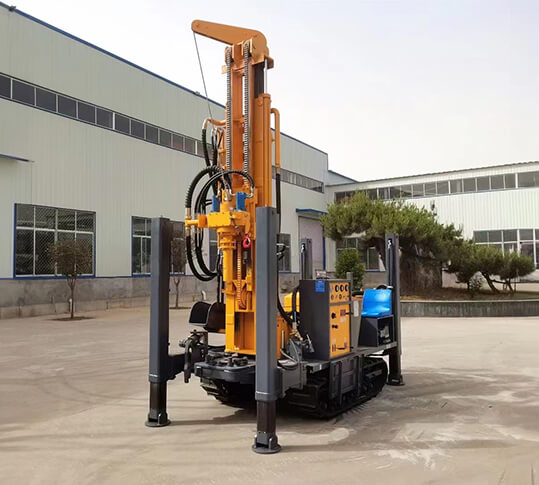

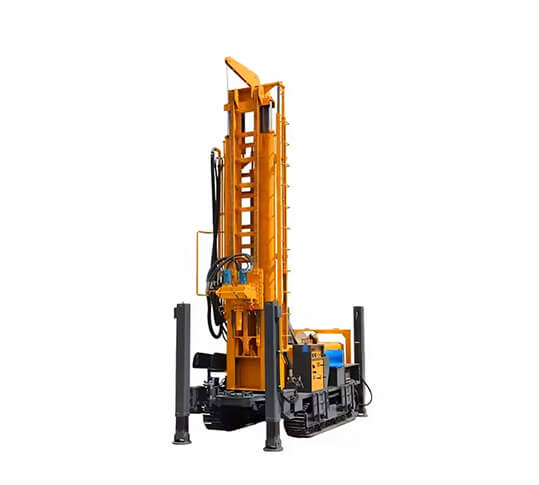

KW200r Water well drill rig is upgrade from KW180r, compared with KW180r bore well drill rig, KW200r’s drilling diameter can reach to 305mm, and the drilling depth also can reach 200 meters, engine power also upgrade from 55Kw to 65Kw, besides, the lifting force for KW200 is 13 tons, and operation panel also more simple and convenient for the operator, at the same time KW200r equipped with rubber crawler, which is more durable and have long service life, can adapt more tough working condition.

Features

Equipped with 65KW Quanchai brand turbocharged engine, strong power.
Patented design composite boom, double cylinder lift, long stroke, large tonnage.
The main boom of each rig is equipped with a stopper to protect the cylinder.
Drilling machine chassis: professional excavator chassis ,durable,heavy bearing capacity,wide chain plate, less damage to hard road.

Technical Parameters

Model	KW200R
Drilling depth	200m
Dia.hole	φ140-305mm
Advance Length one time	3.4m
Working pressure	1.7-3.0MPa
Air consumption	15-31m³/min
Length of rod	1.5m,2m,3m
Dia. Of rod	φ76, φ89,φ102
Lifting power	13T
Rotation torque	3300-4700N.m
Rotation Speed	45-65r/min
Diesel Engine	Quanchai
Engine Power	65Kw
Travelling speed	0-2.5 Km/h
Climb capacity	30°
Weight	5000kgs
Dimension	3950x1700x2300mm
Application	Complicated geological conditions:Rock,Mud,Sand etc.
Drilling Way	Top drive hydraulic rotary and propulsion,Dth Drilling or Mud Pump Driling
Dth Hammer	4",5",6",8" Drill hammer or CIR110, 130, 150,170
