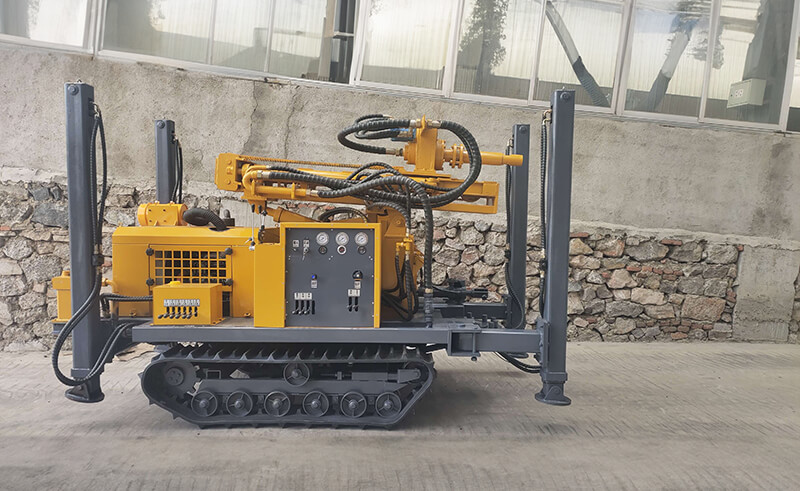

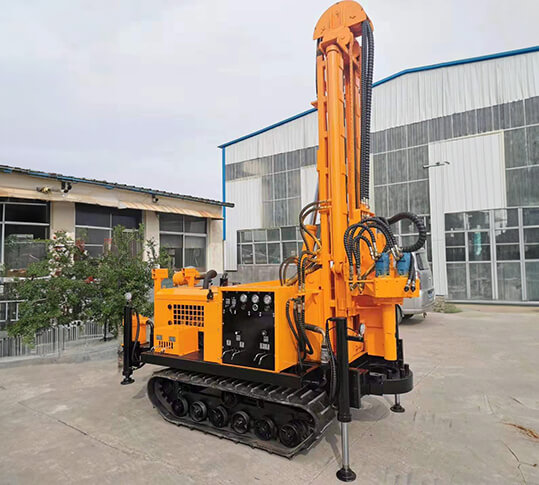

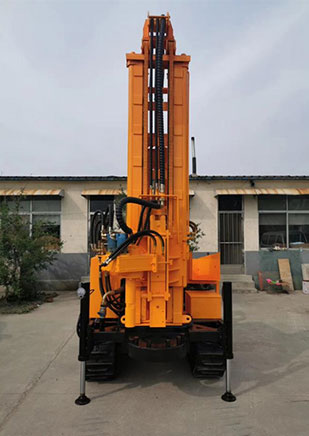

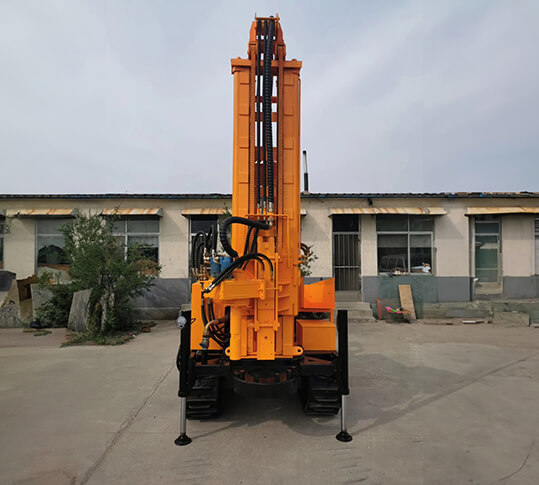

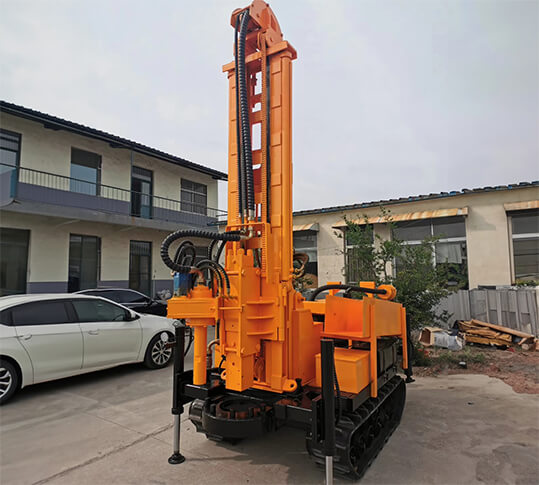

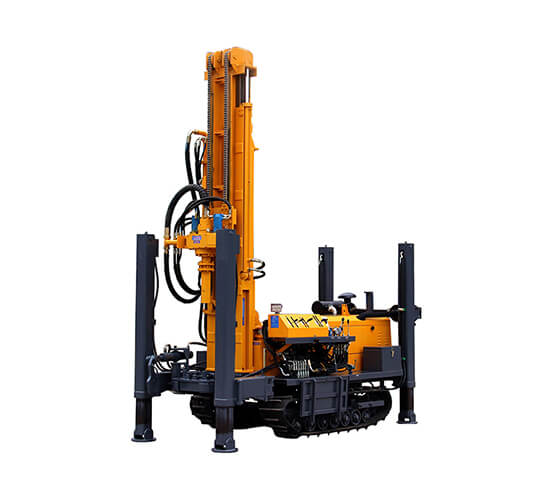

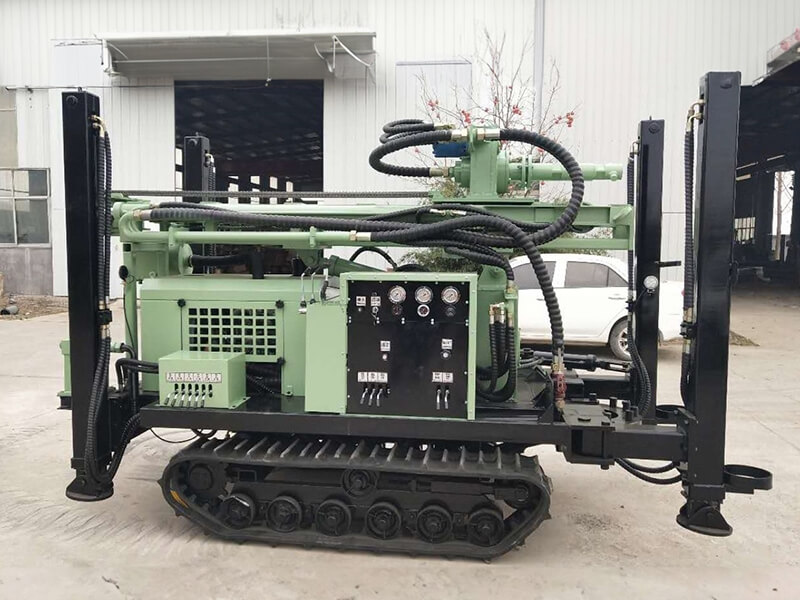

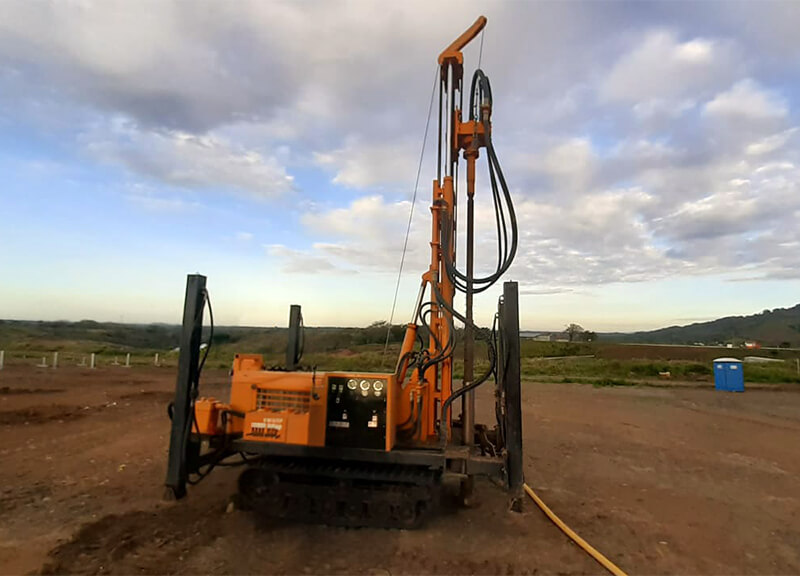

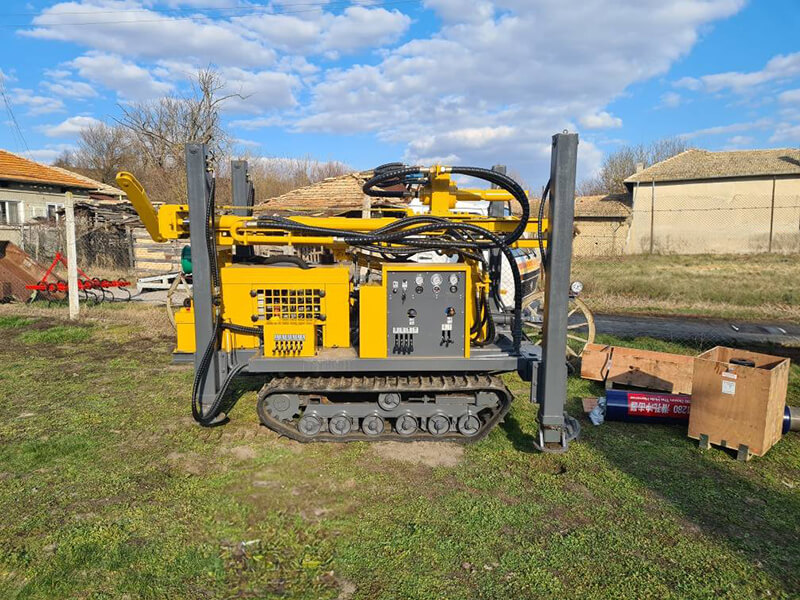

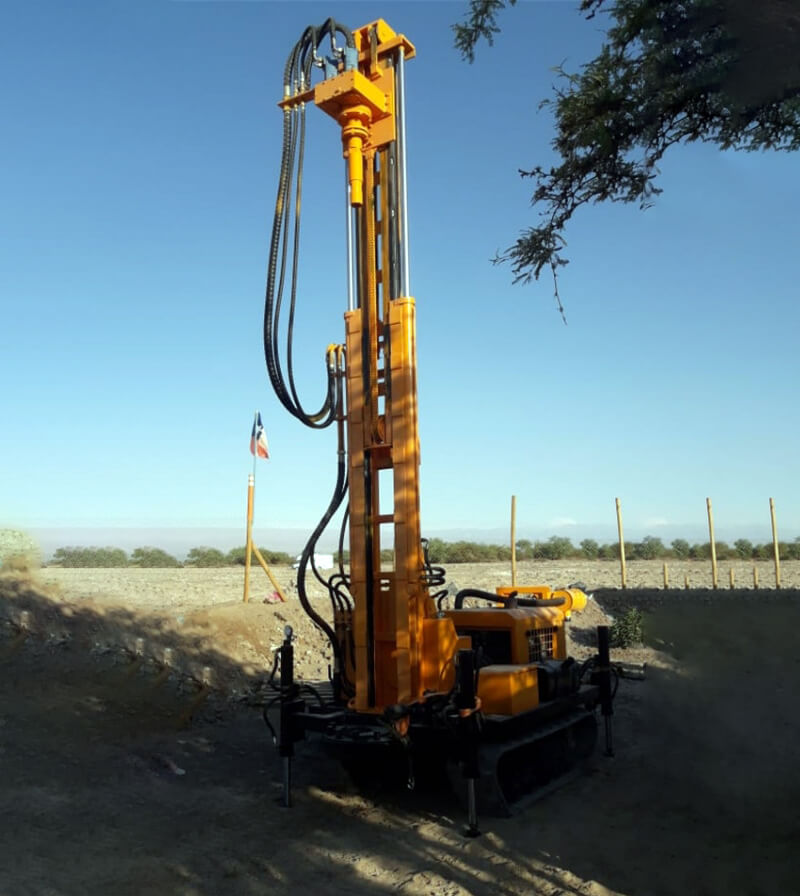

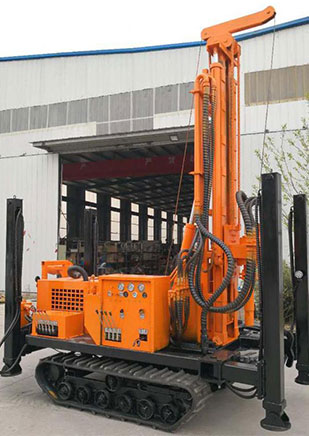

KS150R Water Well Drilling Rig-Kaishan Machines Equipment Co LTD

Applications

The drilling rig is used for deepwater well engineering of various industrial and mining enterprises, domestic water wells, farmland irrigation and various types of ground temperature air conditioning and other well construction projects.

The drilling rig can also use the casing to follow the wall forming process to drill water wells, which can adapt to various The geological layer is small in size, simple in operation, advanced in technology, convenient and flexible to use.

Features

Excavator crawler chassis with strong off-road performance.
The independent module design allows the rig to be mounted on the truck for increased maneuverability.
Two-speed swing and propulsion speeds are available for different piercing needs in soil and rock formations.
The combined positioner can adjust and replace the positioning plate according to different types of drill pipe and impactor to ensure accurate and reliable positioning and centering.
The hoisting mechanism facilitates the lifting of the drill pipe and the impactor, reducing labor intensity

Technical parameter

Model（Crawler Type）	KS150R （Rubber Chain ）
Weight （kg)	4000
Dimenstion (mm)	400015002150
Drilling Hole Diameter （mm）	130-219
Drilling Depth（m）	150
Feed Stroke（mm)	3000
Travelling Speed(km/h)	2
Climb Capacity (max)	25°
Ground Clearance (mm)	250
Working Pressure(Mpa)	1.45-2.5
Air Consumption（m³/min)	15-27
Power（kw)	42KW
Brand of Diesel engine	Yunnei
Rotation Speed（rpm)	38-55
Rotation Torque（Nm)	4000-5000
