Technical Specifications: KW400
Equipped Engine: Yuchai 96KW
Drilling Diameter: 140-325mm
Drilling Depth: 400m

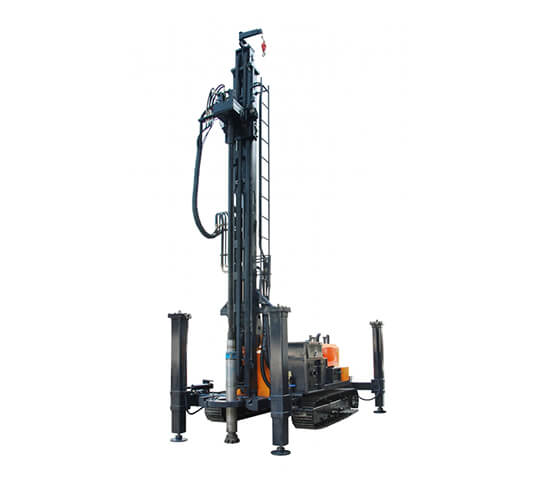

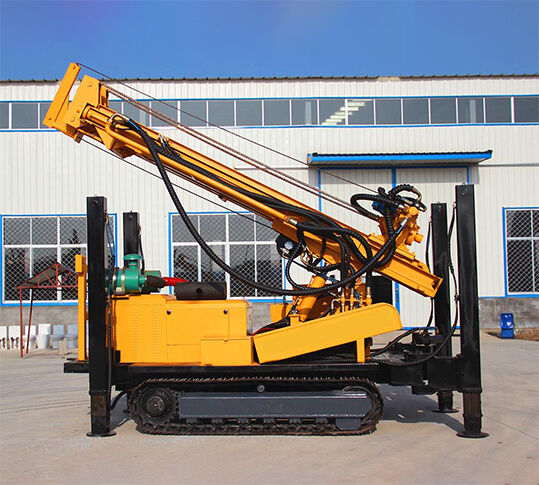

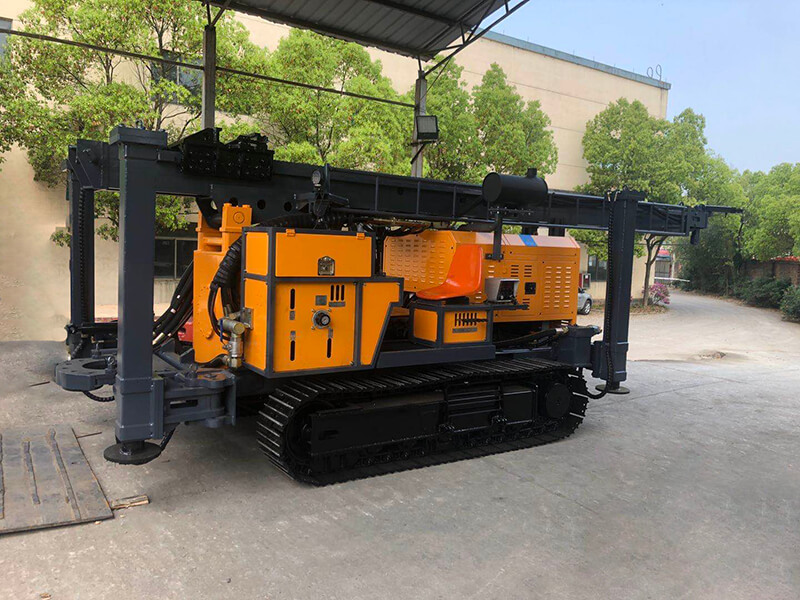

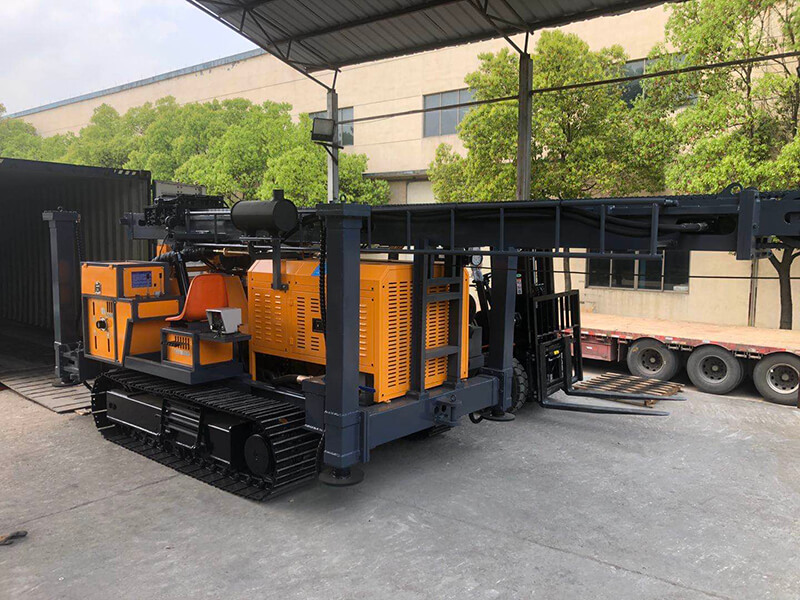

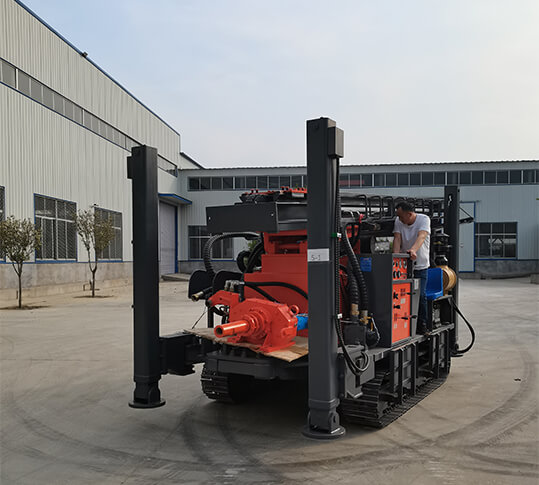

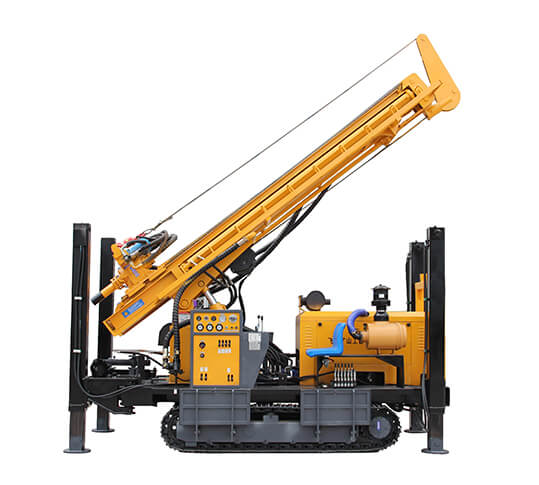

KW400 model Multi-Function Geothermal Water Well Drill Rig is mainly used for drilling water wells ,ground source heat pump wells and other uses of the borehole. The rig can drill work on different Geological formations, drilling hole diameter is larger, the max hole depth of up to 400 meters.
Unique deep hole axial compression adjustable system to Adjust impetus, deep hole drilling reduces the rotation resistance. Have two-stage telescopic /shrink carriage, use 6 m drill pipe, reducing the times of change drill pipe.
The top-mounted driving head principal shaft has a great drift diameter, which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
| Model | KW400 |
| Drilling depth | 400m |
| The hole diameter | Φ140--325mm |
| One-time advance length | 6.6m |
| Working pressure | 17-34bar |
| Air consumption | 17-36m³/min |
| Drilling pipe length | 1.5m 2m 3m 6m |
| Drill pipe diameter | Φ89 ,φ102mm |
| Rig lifting force | 24T |
| Hoisting force of winch | 2T |
| Swing torque | 6500-9000N.m |
| Swing speed | 66-135r/min |
| The penetration efficiency | 15-35m/h |
| High leg stroke | 1.6m |
| The engine brand | Yuchai |
| Equipped capacitor | 96KW |
| Walking speed | 0-2.5 Km/h |
| Climbing angles | 30° |
| The weight | 9.2T |
| Dimension | 5950*2100*2550mm |
| Use | Complicated geological conditions: Rock, mud, sand etc. |
| Drilling mode | Superior hydraulic rotation and propulsion & DTH drilling or mud pumping |
| Equipped with Hammer | 5'',6", 7",8" Medium and high wind pressure series |
| Tool | Winch, Welding machines，Foam pump |
