Technical Specifications: KL510
Rock Drill Model: HC95LQa 24kW
Drilling Diameter: 64-115 mm
Drilling Depth: 25 m

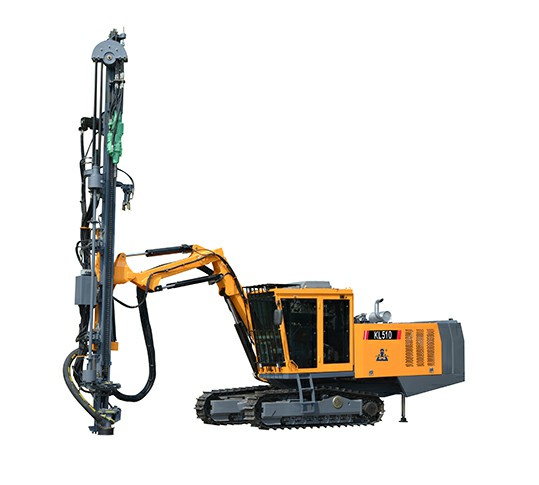

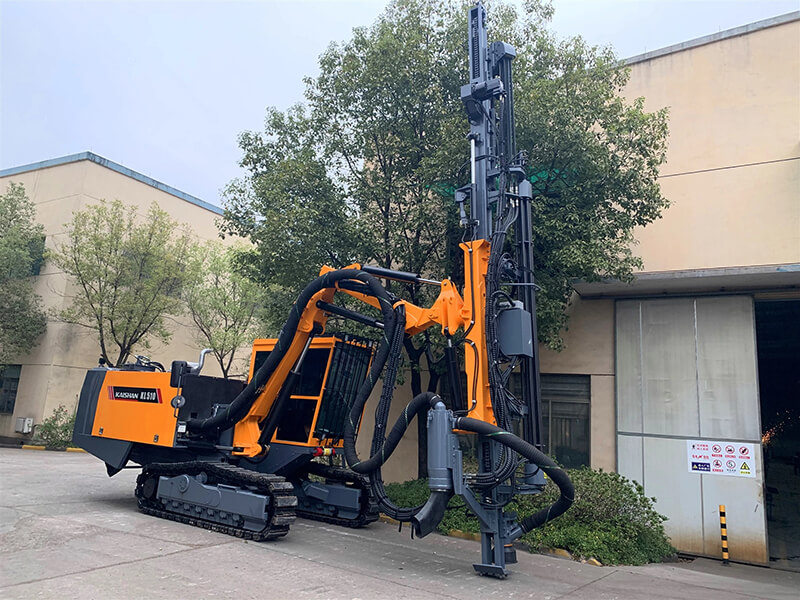

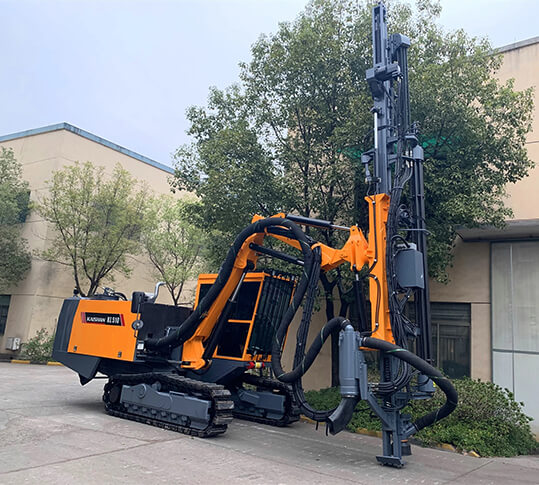

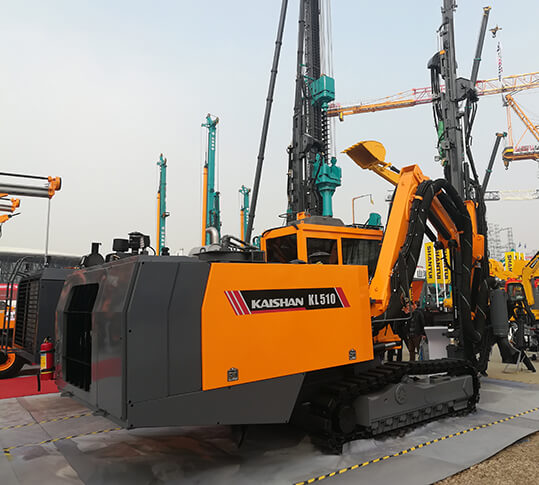

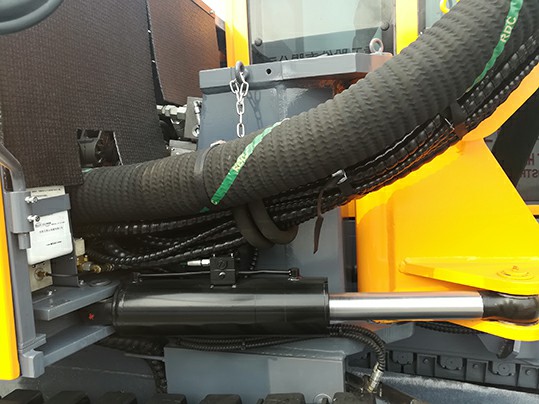

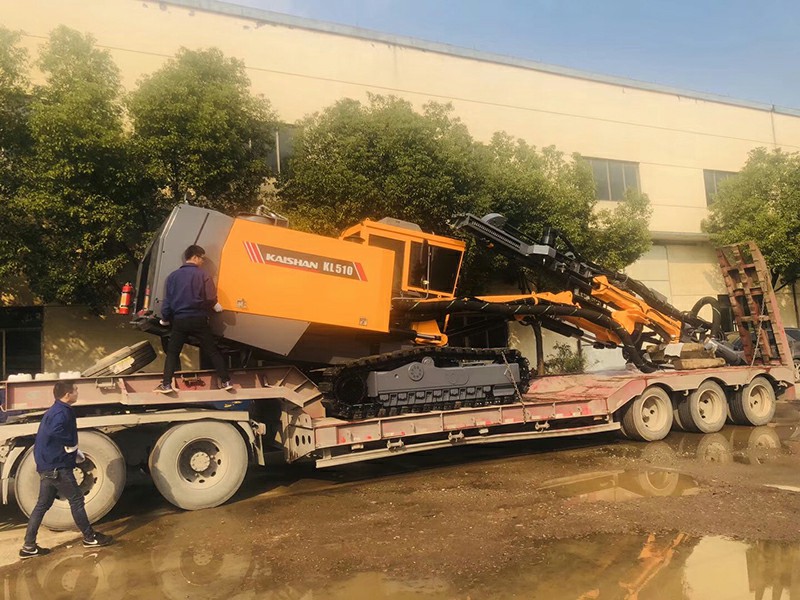

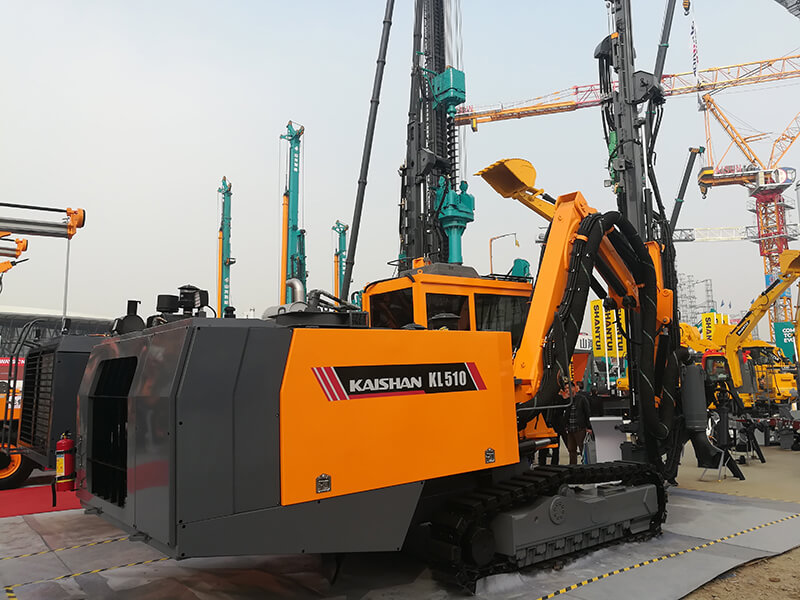

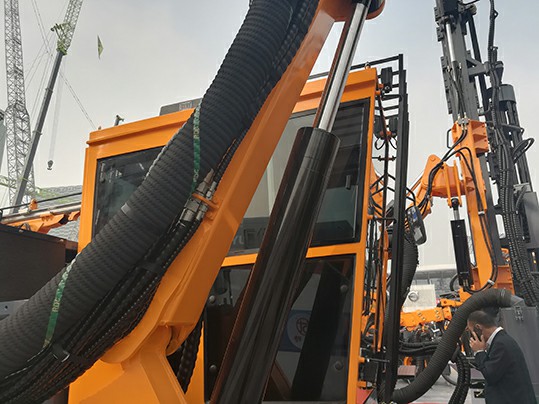

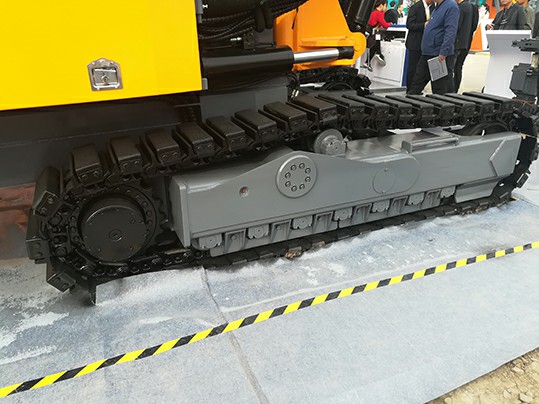

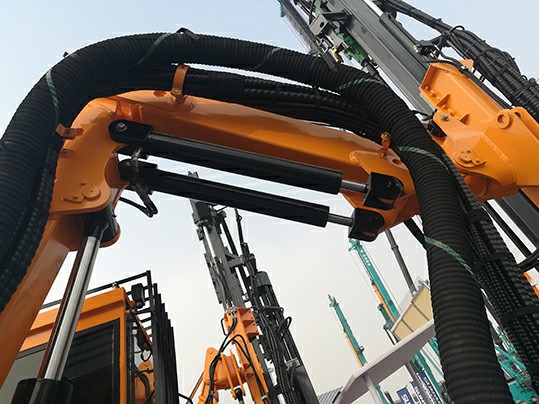

KL510 hydraulic drilling rig for open use is fitted with the standard drill rod whose diameter reaches 45/38 millimeters, which is capable of drilling vertical, inclined and horizontal blast holes in the range of 64-115 millimeters. It has a wide range of applications in cutting excavation, pipelining, foundation and open-pit mine drilling.
KL510 drilling rig is equipped with a hydraulic top hammer rock drill(24kW) from Europe. With powerful rotary toque, impact power,adequate hole flushing ability and advanced control system, make it perfectly capable drilling in complex rock conditions.
The drilling rig is fitted with the efficient Kaishan screw air compressor. Characterized by energy conservation and environmental protection, our company owns the complete proprietary intellectual property.
| Technical Parameters | |||||
| Dimensions and weight | Hydraulic rock drill | Drill boom, advancing beam and rod changer | |||
| Transport dimensions (length*width*height) | 10500*2450*3200mm | Model | HC95LQa | Lifting of drill boom | 94° |
| Impact power | 24KW | Swing of drill boom | -18°/50° | ||
| Weight | 16500kg | Impact pressure | 180-200bar | Lifting of folding boom | 120° |
| Articulated drill boom and chassis | Impact frequency | 48-57HZ | Swing angle of Beam | -93°/20°；-20°/94° | |
| Ground clearance | 430mm | Impact frequency | 955Nm | Carriage inclination | 120° |
| Frequency modulation angle of track | 10° up,10° down | Maximum rotary pressure | 210bar | Compensation stroke | 1353mm |
| Tramming speed | 0-3.5km/h | Maximum rotary speed | 150rpm | Stroke of rock drill | 4150mm |
| Climbing capacity | 30° | ||||
| Traction | 120kN | Shank lubrication | Air/oil mist | Maximum propelling force | 19KN |
| Power unit | Fuel consumption of lubrication | 15drops/min | Feed Method | Motor-roller chain | |
| Engine | cummins QSC8.3-C240-30 | ||||
| Number of cylinders | 6 | Drilling diameter | 64-115mm | Depth of economical drilling | 25m |
| Output power | 179KW/2200rpm | Control system | Number of rods | 6+1 | |
| Drive type | Front-rear output | Travelling | Hydraulic pilot | Specification of drill rod | T45/T38×3660 |
| Hydraulic pump | 2×variable displacement piston pump+2×gear pump | Drill boom | Hydraulic direct control | Thread lubrication of drill rod | Pneumatic lubricating pump |
| Screw air compressor | Zhejiang Kaishan | Rock drilling | Pilot control(electric/hydraulic) | Hydraulic system | |
| Capacity of air compressor | 8.5m³/min | Opening control | Stepless | Travelling, drilling | Load sensing |
| Air pressure | 10bar | Impact control | Control of shock pressure | Filter fineness | 10µm |
| Fuel tank | 340L | Anti-jamming | Electric/hydraulic | Cooling capacity | Ambient temperature: +50° |
| Dust-collecting system | Voltage | 24V, DC | Hydraulic oil tank | 250L | |
| Capacity of dust collector and vacuum degree | 20m³/min; 1000mm water column | Cab | |||
| Filter element/materia | 8/fiber | Safety cab | Meet the requirements of FOPS and ROPS | Seat | Adjustable |
| Filtering area | 7m² | Indoor noise level | Below 85dB(A) | Air-conditioning | Standard temperature |
| Power of hydraulic motor | 7.5KW | Control function | Drilling, travelling, movement of drill boom and rod changer | Entertainment | Radio+MP3 |
