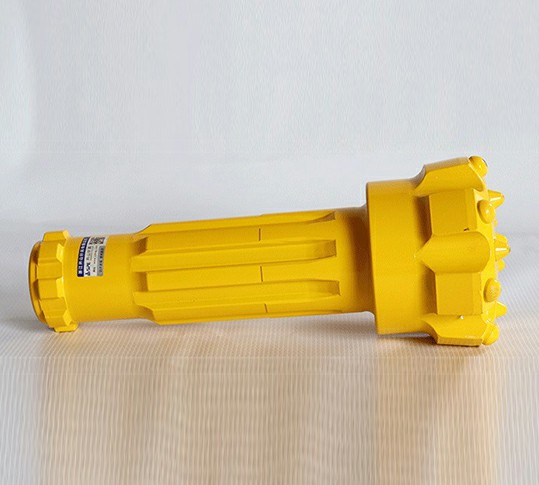

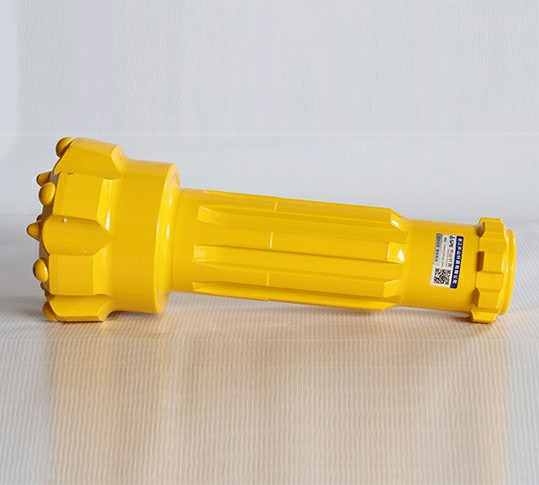

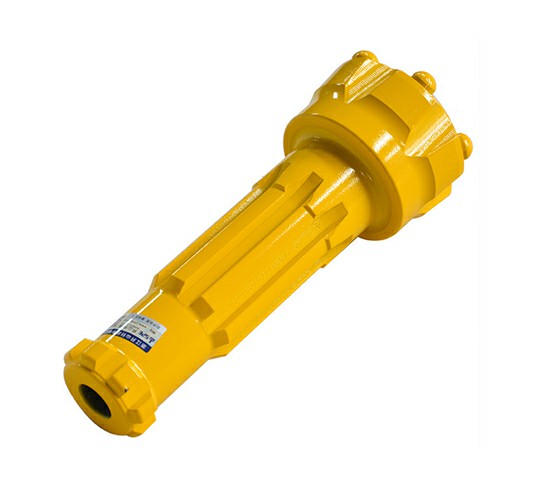

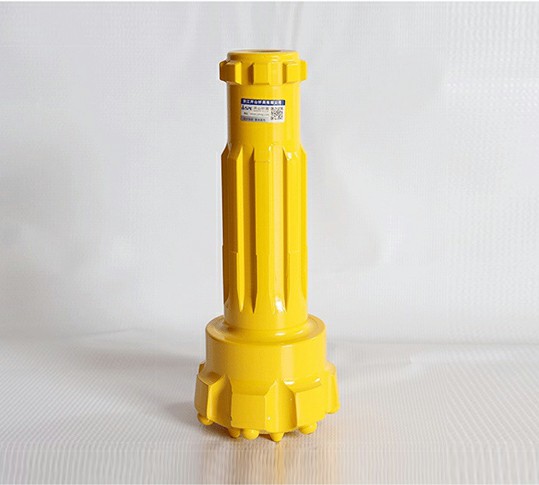

5 inch high air pressure DTH bits
6 inch high air pressure DTH bits
DTH drill bits are widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain.
1. Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
2. Recommended for eliminating hole deviation
3. Widely used drifting and tunneling
4. Bit face design is ideal for medium-hard to hard abrasive rock
|
Drill Bit |
The Drill Head Diameter (mm) |
Spline Key Number |
Gauge Buttons |
Front Buttons |
Weight |
Part No |
|
|
135 |
2 |
7XΦ18 |
6XΦ14 |
15.0 |
HD55-135 |
|
140 |
2 |
7XΦ18 |
7XΦ14 |
16.0 |
HD55-140 |
|
|
146 |
2 |
7XΦ18 |
7XΦ14 |
17.0 |
HD55-146 |
|
|
152 |
2 |
8XΦ18 |
8XΦ14 |
17.5 |
HD55-152 |
|
|
165 |
2 |
8XΦ18 |
8XΦ16 |
18.5 |
HD55-165 |
|
|
|
135 |
2 |
7XΦ18 |
6XΦ14 |
15.5 |
SD5-135 |
|
140 |
2 |
7XΦ18 |
7XΦ14 |
16.0 |
SD5-140 |
|
|
146 |
2 |
7XΦ18 |
7XΦ14 |
16.5 |
SD5-146 |
|
|
152 |
2 |
8XΦ18 |
8XΦ14 |
17.0 |
SD5-152 |
|
|
165 |
2 |
8XΦ18 |
8XΦ16 |
18.0 |
SD5-165 |
|
|
|
135 |
2 |
7XΦ18 |
6XΦ14 |
15.5 |
QL50-135 |
|
140 |
2 |
7XΦ18 |
7XΦ14 |
16.0 |
QL50-140 |
|
|
146 |
2 |
7XΦ18 |
7XΦ14 |
16.5 |
QL50-146 |
|
|
152 |
2 |
8XΦ18 |
8XΦ14 |
17.0 |
QL50-152 |
|
|
165 |
2 |
8XΦ18 |
8XΦ16 |
18.0 |
QL50-165 |
|
|
|
135 |
2 |
7XΦ18 |
6XΦ14 |
12.5 |
HM5-135 |
|
140 |
2 |
7XΦ18 |
7XΦ14 |
13.5 |
HM5-140 |
|
|
146 |
2 |
7XΦ18 |
7XΦ14 |
14.0 |
HM5-146 |
|
|
152 |
2 |
8XΦ18 |
8XΦ14 |
14.4 |
HM5-152 |
|
|
165 |
2 |
8XΦ18 |
8XΦ16 |
15.0 |
HM5-165 |
|
Drill Bit |
The Drill Head Diameter (mm) |
Spline Key Number |
Gauge Buttons |
Front Buttons |
Weight |
Part No |
|
|
152 |
2 |
8XΦ18 |
7XΦ16 |
22.0 |
HD65-152 |
|
165 |
2 |
8XΦ18 |
8XΦ16 |
26.0 |
HD65-165 |
|
|
171 |
2 |
8XΦ18 |
8XΦ16 |
27.0 |
HD65-171 |
|
|
190 |
3 |
9XΦ18 |
9XΦ16 |
28.5 |
HD65-190 |
|
|
203 |
3 |
9XΦ18 |
11XΦ16 |
29.5 |
HD65-203 |
|
|
|
152 |
2 |
8XΦ18 |
7XΦ16 |
26.0 |
SD6-152 |
|
165 |
2 |
8XΦ18 |
8XΦ16 |
27.0 |
SD6-165 |
|
|
171 |
2 |
8XΦ18 |
8XΦ16 |
29.0 |
SD6-171 |
|
|
190 |
3 |
9XΦ18 |
9XΦ16 |
32.0 |
SD6-190 |
|
|
203 |
3 |
9XΦ18 |
11XΦ16 |
34.0 |
SD6-203 |
|
|
|
152 |
2 |
8XΦ18 |
7XΦ16 |
24.0 |
QL60-152 |
|
165 |
2 |
8XΦ18 |
8XΦ16 |
25.0 |
QL60-165 |
|
|
171 |
2 |
8XΦ18 |
8XΦ16 |
27.0 |
QL60-171 |
|
|
190 |
3 |
9XΦ18 |
9XΦ16 |
29.0 |
QL60-190 |
|
|
203 |
3 |
9XΦ18 |
11XΦ16 |
33.0 |
QL60-203 |
|
|
|
152 |
2 |
8XΦ18 |
7XΦ16 |
22.0 |
HM6-152 |
|
165 |
2 |
8XΦ18 |
8XΦ16 |
23.0 |
HM6-165 |
|
|
171 |
2 |
8XΦ18 |
8XΦ16 |
24.0 |
HM6-171 |
|
|
190 |
3 |
9XΦ18 |
9XΦ16 |
25.0 |
HM6-190 |
|
|
203 |
3 |
9XΦ18 |
11XΦ16 |
28.0 |
HM6-203 |
