Technical Specifications: KW600C
Equipped Engine: Cummins 153KW
Drilling Diameter: 140-400mm
Drilling Depth: 600m

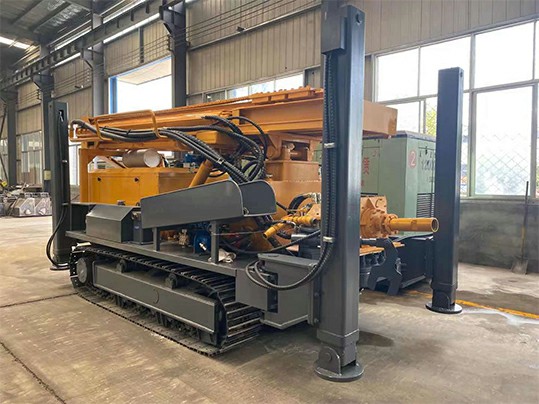

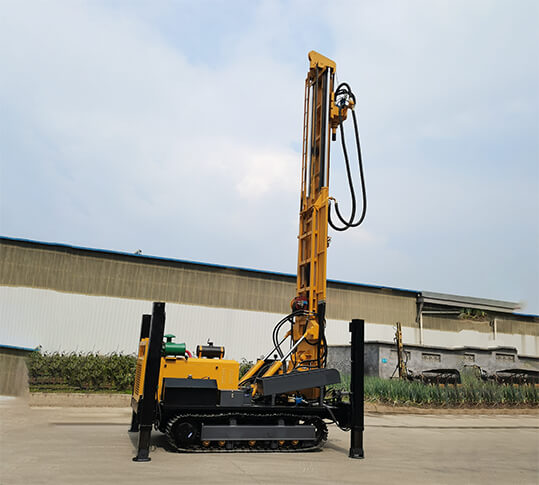

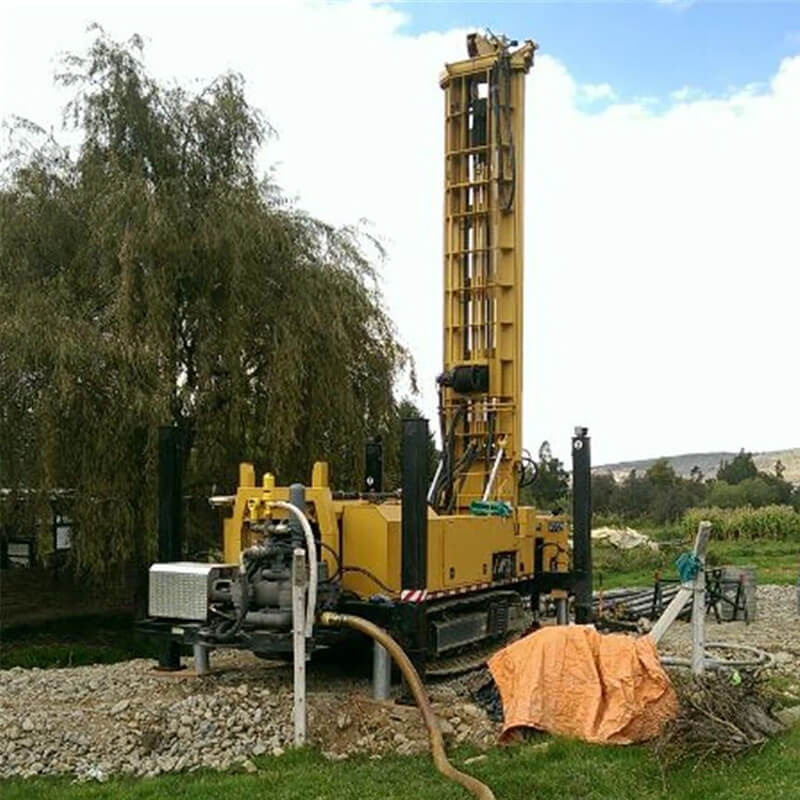

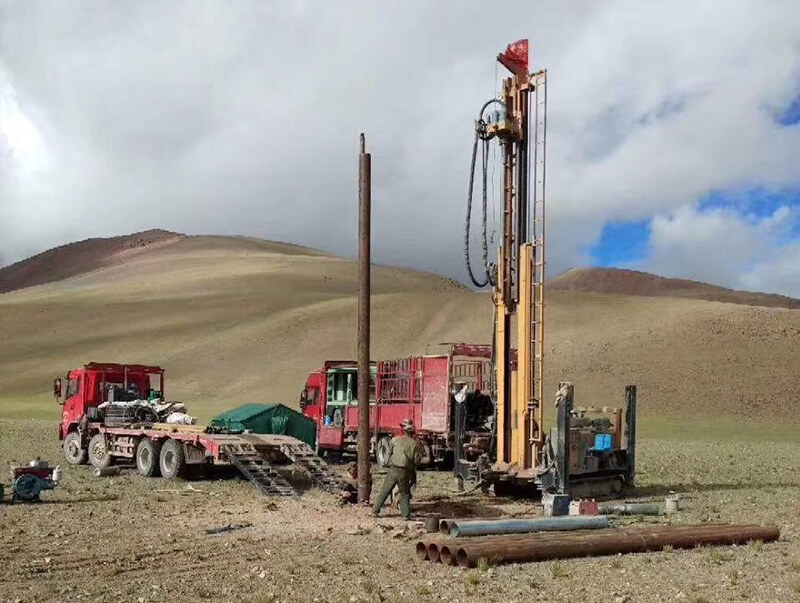

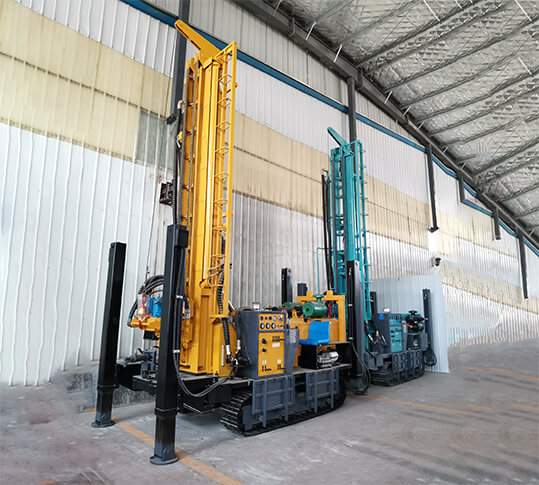

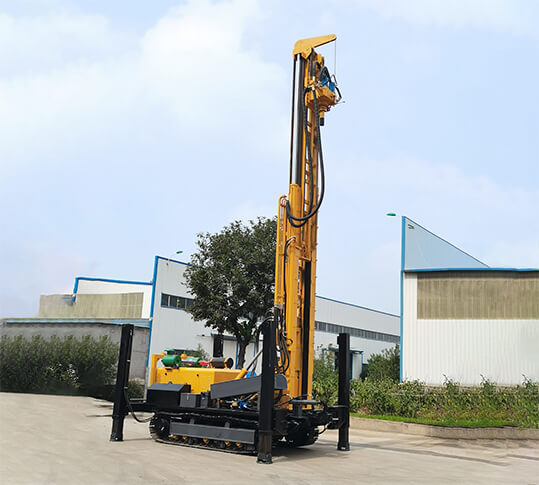

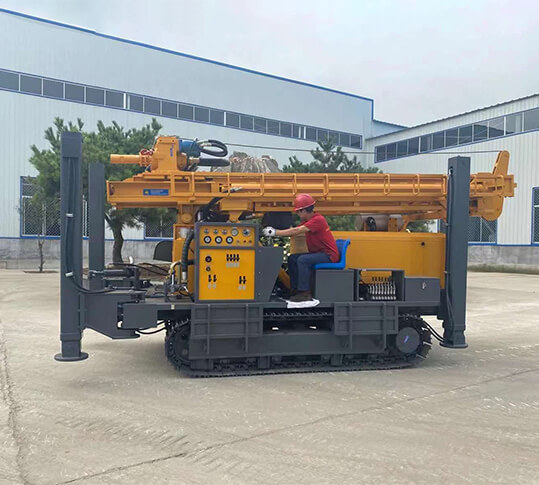

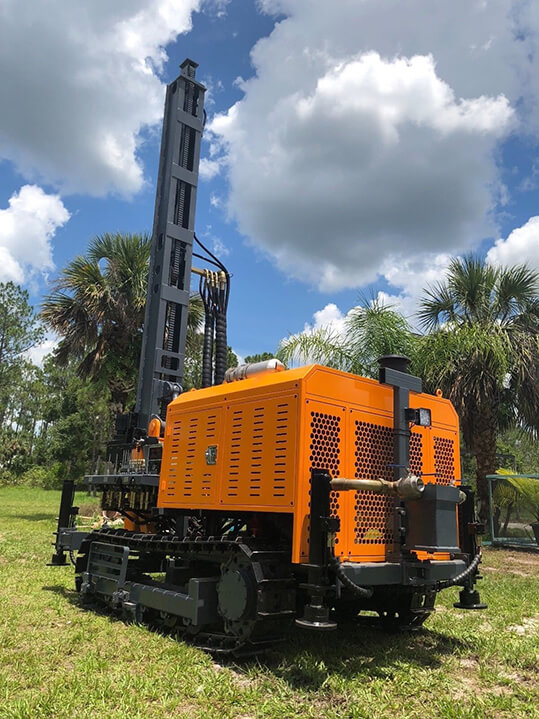

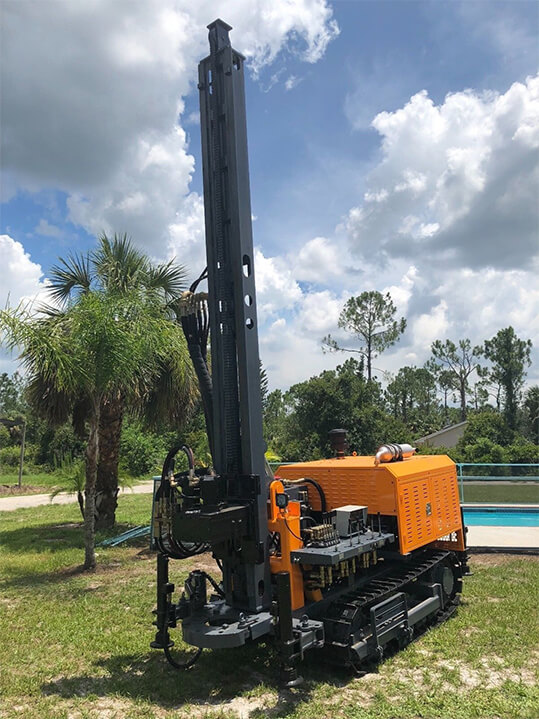

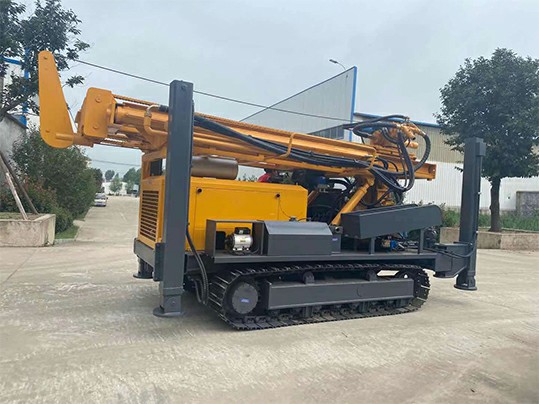

KW600C multifunctional drilling equipment is mainly suitable for drilling water wells, agricultural irrigation wells and other wells, especially suitable for water intake projects in mountainous areas and rock formations.
The efficiency is ten times higher than that of traditional rotary drilling rigs, and the economic benefits created for users are extremely considerable. In particular, it solves the difficulty of air DTH hammer drilling into the soil layer, and solves the construction problem of the rotary drilling rig in the hard rock layer, gravel layer, and pebble layer. It can work efficiently under various geological structures and realize the perfect combination of water drill and air drill.
| Model | KW600C |
| Drilling depth | 600m |
| The hole diameter | Φ140--400mm |
| One-time advance length | 6.6m |
| Working pressure | 17-35bar |
| Air consumption | 17-42m³/min |
| Drilling pipe length | 1.5m 2m 3m 6m |
| Drill pipe diameter | Φ102,Φ108 ,φ114mm |
| Rig lifting force | 30T |
| Hoisting force of winch | 2T |
| Swing torque | 8850-13150N.m |
| Swing speed | 45-140r/min |
| The penetration efficiency | 15-35m/h |
| High leg stroke | 1.7m |
| The engine brand | Cummins |
| Equipped capacitor | 153KW |
| Walking speed | 0-2.5 Km/h |
| Climbing angles | 30° |
| The weight | 13T |
| Dimension | 6300*2300*2650mm |
| Use | Complicated geological conditions: Rock, mud, sand etc. |
| Drilling mode | Superior hydraulic rotation and propulsion & DTH drilling or mud pumping |
| Equipped with Hammer | 6", 7",8" Medium and high wind pressure series |
| Tool | Winch, Welding machines，Foam pump |
